BMS 46-17 HS-B-C-P-A-A Grundfos
Grundfos

BMS 46-17 HS-B-C-P-A-A

Codice: 99059893 EAN: 5712605984634
Tipo BMS hs AC
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)85 m³/h
Prevalenza nominale (m)545 m
Numero di stadi17
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Peso lordo799 kg
Peso netto646 kg
ApprovazioniCE, TR
Codice EAN5712605984634

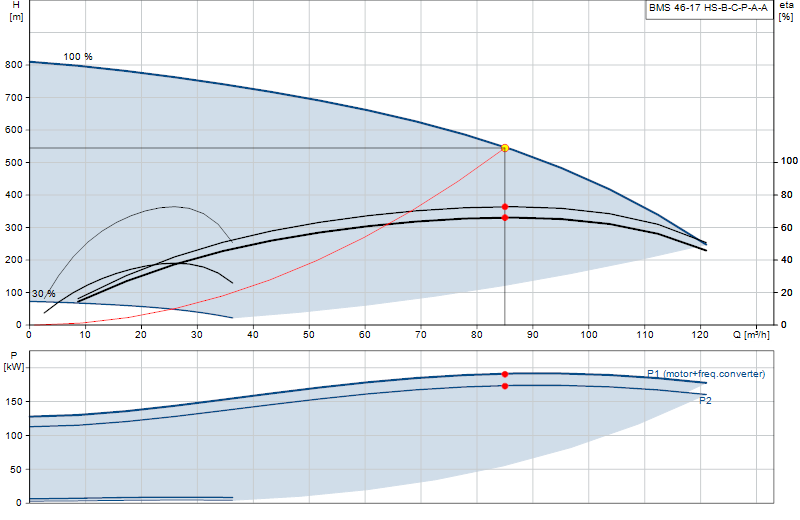

Curva di prestazione

Curva di prestazione BMS 46-17 HS-B-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
