BMS 32-17 HS-B-C-P-A-A Grundfos
Grundfos

BMS 32-17 HS-B-C-P-A-A

Codice: 93204374 EAN: 5715123591285
Tipo BMS hs AC
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)55 m³/h
Prevalenza nominale (m)488 m
Numero di stadi17
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Altezza (mm)308.5 mm
Peso lordo601 kg
Peso netto488 kg
ApprovazioniCE, TR
Codice EAN5715123591285

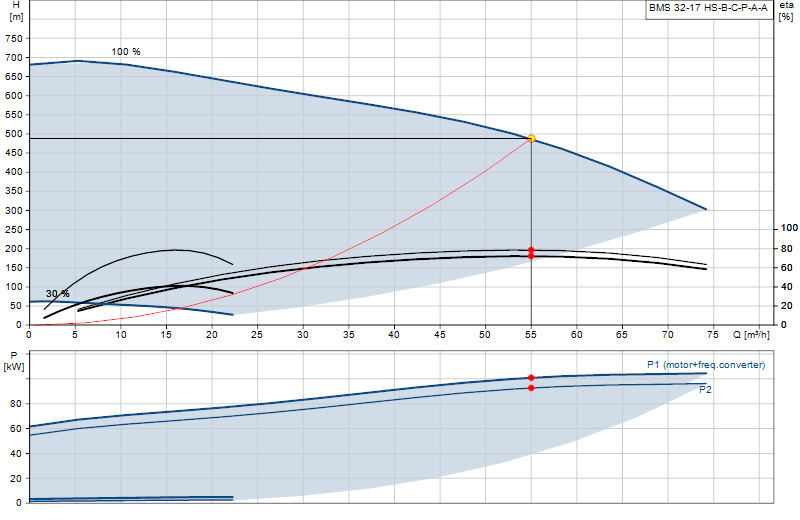

Curva di prestazione

Curva di prestazione BMS 32-17 HS-B-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
