BMS 46-17 HS-B-C-P-A-A Grundfos
Grundfos

BMS 46-17 HS-B-C-P-A-A

Codice: 99022849 EAN: 5712605272359
Tipo BMS hs AC
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)83 m³/h
Prevalenza nominale (m)496 m
Numero di stadi17
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Peso lordo789 kg
Peso netto636 kg
ApprovazioniCE, TR
Codice EAN5712605272359

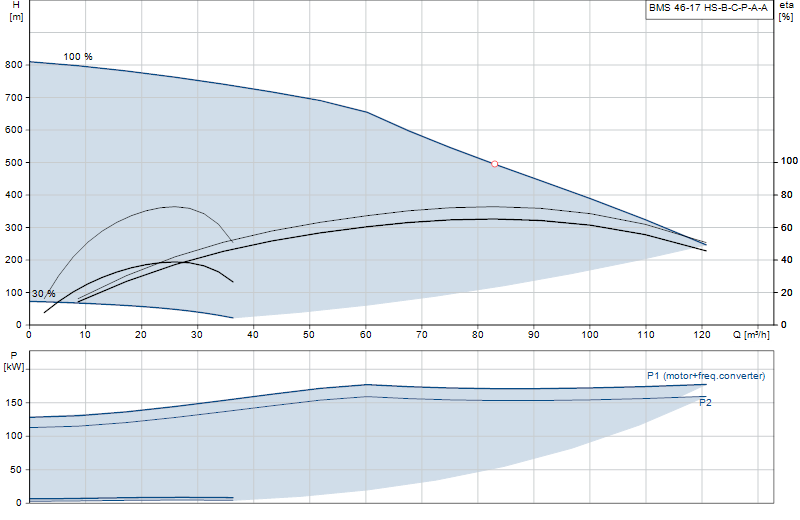

Curva di prestazione

Curva di prestazione BMS 46-17 HS-B-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Varianti e codici alternativi

BMS 46-17 HS-B-C-P-A-A
Grundfos BMS 46-17 HS-B-C-P-A-A 85 m³/h545 m
