BMS 46-15 HS-B-C-P-A-A Grundfos
Grundfos

BMS 46-15 HS-B-C-P-A-A

Codice: 92743703 EAN: 5715118985792
Tipo BMS hs AC
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)87 m³/h
Prevalenza nominale (m)474 m
Numero di stadi15
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Peso lordo758 kg
Peso netto625 kg
ApprovazioniCE, TR
Codice EAN5715118985792

Curva di prestazione

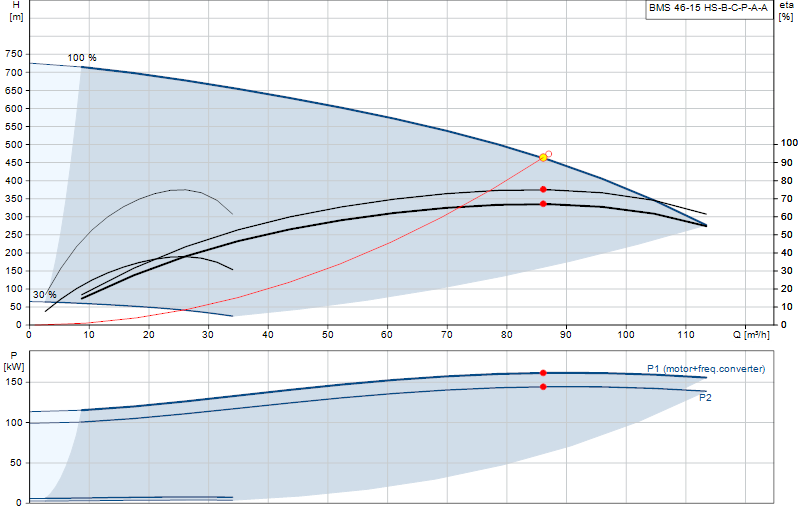

Curva di prestazione BMS 46-15 HS-B-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Alternative equivalenti

Pompe della stessa classe idraulica di 92743703 (portata e prevalenza equivalenti), disponibili a catalogo.

BMS 46-15 HS-E-C-P-A-A
Grundfos BMS 46-15 HS-E-C-P-A-A 87 m³/h474 m
BMS 46-17 HS-B-C-P-A-A
Grundfos BMS 46-17 HS-B-C-P-A-A 83 m³/h496 m
Equivalenti
BMS 46-13 HS-E-C-P-A-A
Grundfos BMS 46-13 HS-E-C-P-A-A 87 m³/h410 m
BMS 46-13 HS-B-C-P-A-A
Grundfos BMS 46-13 HS-B-C-P-A-A 87 m³/h410 m
BMS 60-17 HS-E-C-P-A-A
Grundfos BMS 60-17 HS-E-C-P-A-A 94 m³/h440 m
BMS 46-17 HS-E-C-P-A-A
Grundfos BMS 46-17 HS-E-C-P-A-A 78 m³/h450 m
Equivalenti
BMS 60-17 HS-B-C-P-A-A
Grundfos BMS 60-17 HS-B-C-P-A-A 94 m³/h540 m
CRN 95-12
Grundfos CRN 95-12 95 m³/h372.8 m90 kW
