BMS 32-23 HS-B-C-P-A-A Grundfos
Grundfos

BMS 32-23 HS-B-C-P-A-A

Codice: 93204372 EAN: 5715123591261
Tipo BMS hs AC
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)55 m³/h
Prevalenza nominale (m)681 m
Numero di stadi23
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Altezza (mm)308.5 mm
Peso lordo731 kg
Peso netto601 kg
ApprovazioniCE, TR
Codice EAN5715123591261

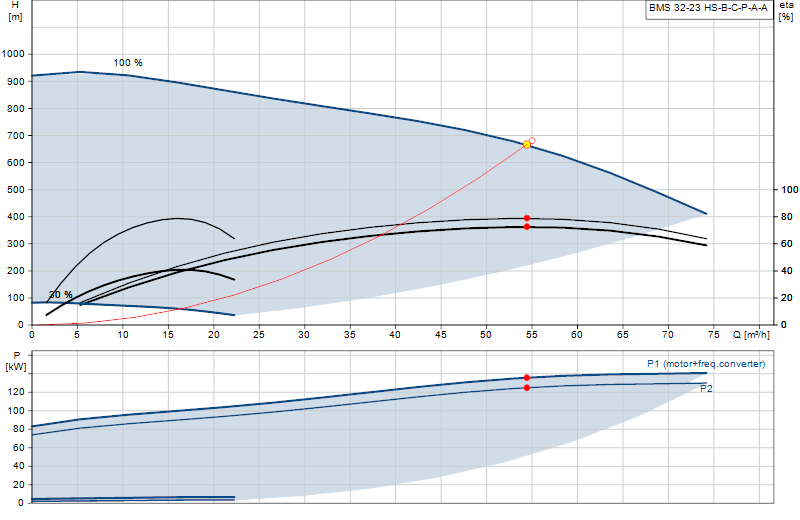

Curva di prestazione

Curva di prestazione BMS 32-23 HS-B-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Alternative equivalenti

Pompe della stessa classe idraulica di 93204372 (portata e prevalenza equivalenti), disponibili a catalogo.

BMS 32-23 HS-E-C-P-A-A
Grundfos BMS 32-23 HS-E-C-P-A-A 55 m³/h661 m
BMS 32-26 HS-B-C-P-A-A
Grundfos BMS 32-26 HS-B-C-P-A-A 55 m³/h734 m
Equivalenti
BMS 32-26 HS-E-C-P-A-A
Grundfos BMS 32-26 HS-E-C-P-A-A 55 m³/h735 m
Equivalenti
BMS 32-20 HS-B-C-P-A-A
Grundfos BMS 32-20 HS-B-C-P-A-A 55 m³/h574 m
