BMS 46-9 HS-B-C-P-A-A Grundfos
Grundfos

BMS 46-9 HS-B-C-P-A-A

Codice: 92726141 EAN: 5715118714149
Tipo BMS hs AC
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)87 m³/h
Prevalenza nominale (m)283 m
Numero di stadi9
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Peso lordo551 kg
Peso netto470 kg
ApprovazioniCE, TR
Codice EAN5715118714149

Curva di prestazione

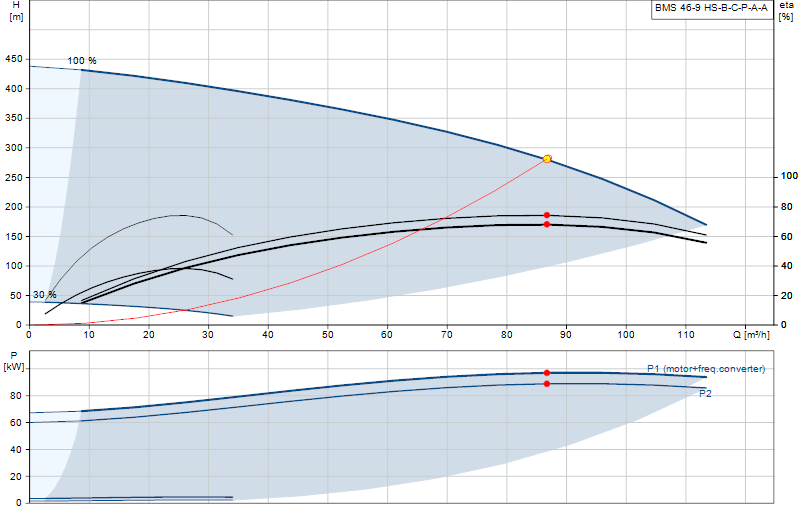

Curva di prestazione BMS 46-9 HS-B-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Alternative equivalenti

Pompe della stessa classe idraulica di 92726141 (portata e prevalenza equivalenti), disponibili a catalogo.

CRN 95-9
Grundfos CRN 95-9 95 m³/h280.1 m75 kW
BMS 46-8 HS-B-C-P-A-A
Grundfos BMS 46-8 HS-B-C-P-A-A 87 m³/h251 m
BMS 60-11 HS-B-C-P-A-A
Grundfos BMS 60-11 HS-B-C-P-A-A 98 m³/h274 m

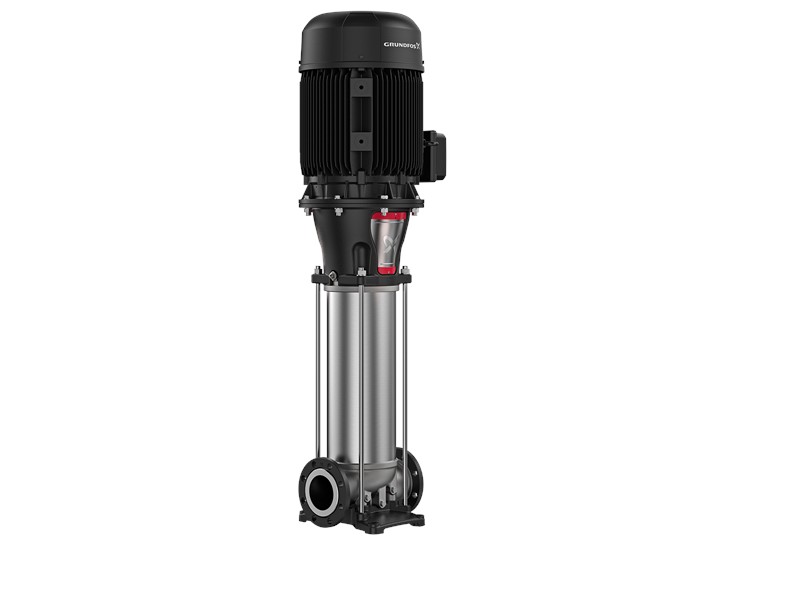

CRN 95-10
