BMS 60-13 HS-B-C-P-A-A Grundfos
Grundfos

BMS 60-13 HS-B-C-P-A-A

Codice: 92743707 EAN: 5715118985853
Tipo BMS hs AC
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)98 m³/h
Prevalenza nominale (m)324 m
Numero di stadi13
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Peso lordo592 kg
Peso netto485 kg
ApprovazioniCE, TR
Codice EAN5715118985853

Curva di prestazione

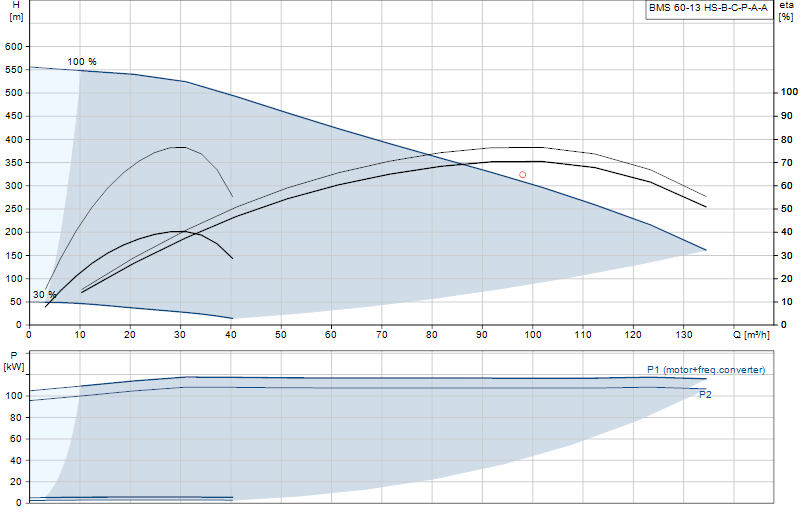

Curva di prestazione BMS 60-13 HS-B-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
