BMS 32-14 HS-E-C-P-A-A Grundfos
Grundfos

BMS 32-14 HS-E-C-P-A-A

Codice: 93204367 EAN: 5715123591216
Tipo BMS hs PM
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)55 m³/h
Prevalenza nominale (m)400 m
Numero di stadi14
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Convertitore di frequenzaExternal
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Altezza (mm)308.5 mm
Peso lordo487 kg
Peso netto348 kg
ApprovazioniCE, TR
Codice EAN5715123591216

Curva di prestazione

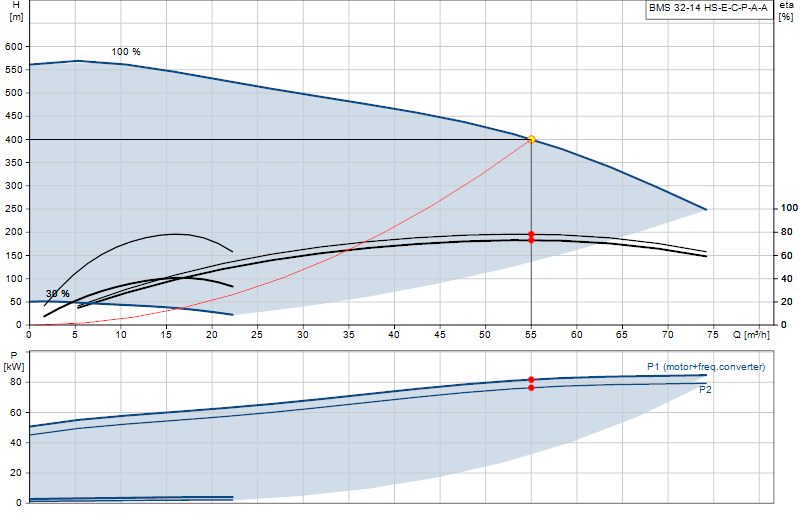

Curva di prestazione BMS 32-14 HS-E-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Alternative equivalenti

Pompe della stessa classe idraulica di 93204367 (portata e prevalenza equivalenti), disponibili a catalogo.

BMS 32-14 HS-B-C-P-A-A
Grundfos BMS 32-14 HS-B-C-P-A-A 55 m³/h401 m
MTRE 3-19/19
Grundfos MTRE 3-19/19 50 m³/h350.7 m7.5 kW
BMS 32-11 HS-E-C-P-A-A
Grundfos BMS 32-11 HS-E-C-P-A-A 55 m³/h314 m
BMS 32-11 HS-B-C-P-A-A
Grundfos BMS 32-11 HS-B-C-P-A-A 55 m³/h314 m
BMS 32-17 HS-B-C-P-A-A
Grundfos BMS 32-17 HS-B-C-P-A-A 55 m³/h488 m
MTRE 3-30/30
Grundfos MTRE 3-30/30 58.3 m³/h303.3 m4 kW
Equivalenti

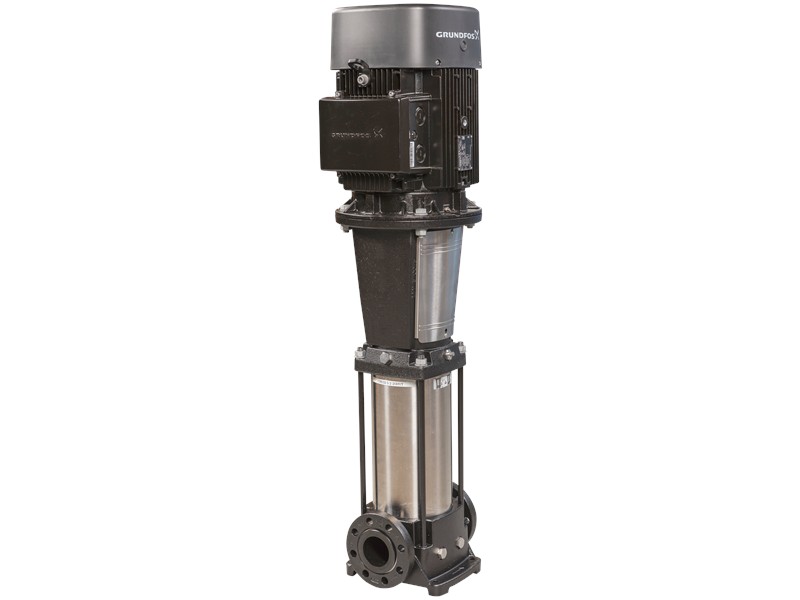

CR 45-13-2
Grundfos CR 45-13-2 45 m³/h321 m45 kW
Equivalenti

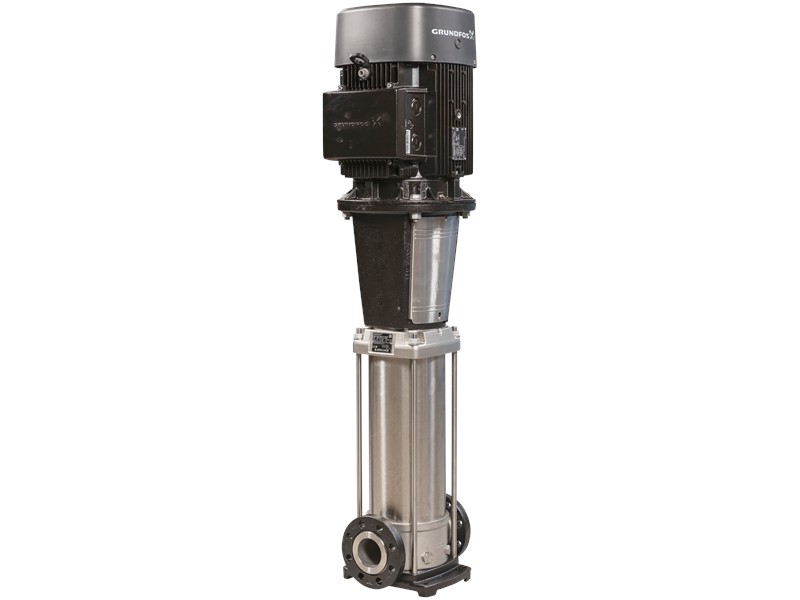

CRN 45-13-2
