BMS 18-16 HS-B-C-P-A-A Grundfos
Grundfos

BMS 18-16 HS-B-C-P-A-A

Codice: 93077840 EAN: 5715123516929
Tipo BMS hs AC
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)32 m³/h
Prevalenza nominale (m)465 m
Numero di stadi16
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Altezza (mm)308.5 mm
Peso lordo510 kg
Peso netto429 kg
ApprovazioniCE, TR
Codice EAN5715123516929

Curva di prestazione

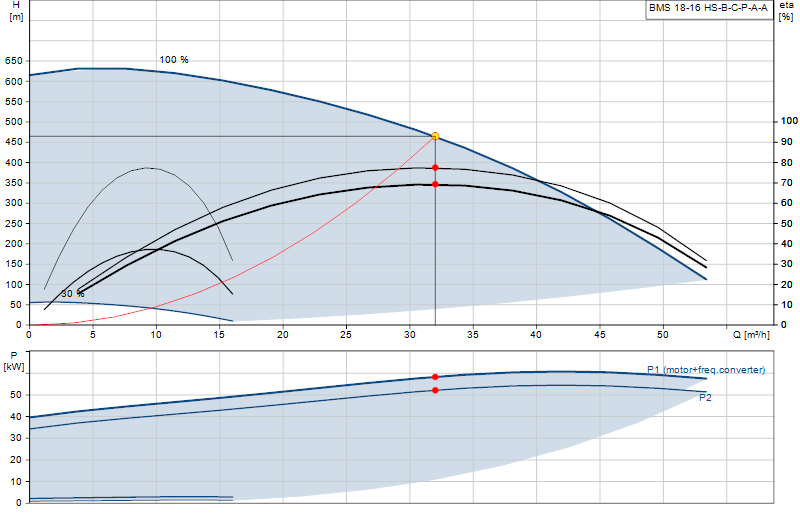

Curva di prestazione BMS 18-16 HS-B-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
