BMS 18-19 HS-E-C-P-A-A Grundfos
Grundfos

BMS 18-19 HS-E-C-P-A-A

Codice: 93077834 EAN: 5715123516769
Tipo BMS hs PM
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)32 m³/h
Prevalenza nominale (m)553 m
Numero di stadi19
Fasi3
Tensione (V)400 V
Frequenza (Hz)50 Hz
Convertitore di frequenzaPrepared for VFD
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Materiale giranteStainless steel
Altezza (mm)308.5 mm
Peso lordo411 kg
Peso netto326 kg
ApprovazioniCE, TR
Codice EAN5715123516769

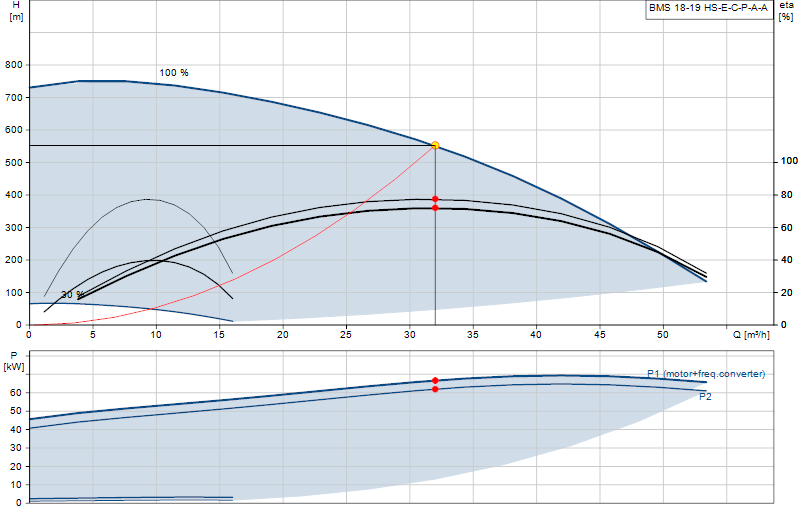

Curva di prestazione

Curva di prestazione BMS 18-19 HS-E-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
