Specifiche tecniche
| Prevalenza max (m) | 15 m |
| Fasi | 1 |
| Tensione nominale | 230 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 55 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Tipo di attacco | Rp |
| Dimensione attacco | 1 1/2 inch |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Stainless steel |
| Larghezza (mm) | 38 mm |
| Peso lordo | 13.3 kg |
| Peso netto | 13.2 kg |
| Approvazioni | CE,RCM,VDE,LGABG,EAC,TUVRHWID, |
| Codice EAN | 5700390473587 |

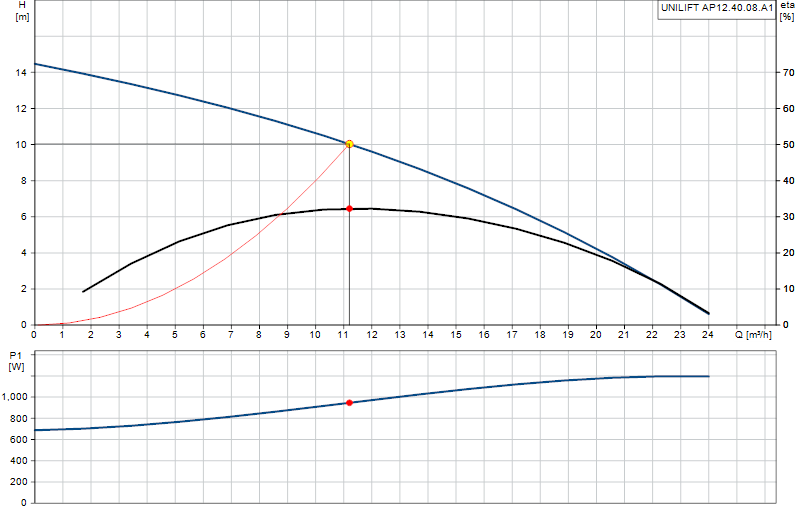

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
