Specifiche tecniche
| Prevalenza max (m) | 11 m |
| Fasi | 1 |
| Tensione nominale | 230 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Tipo di attacco | Rp |
| Dimensione attacco | 2 inch |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Stainless steel |
| Lunghezza (mm) | 234 mm |
| Altezza (mm) | 73 mm |
| Larghezza (mm) | 210 mm |
| Peso lordo | 12.1 kg |
| Peso netto | 11.5 kg |
| Approvazioni | CE,RCM,VDE,LGABG,EAC,MORO, |
| Codice EAN | 5700391489549 |

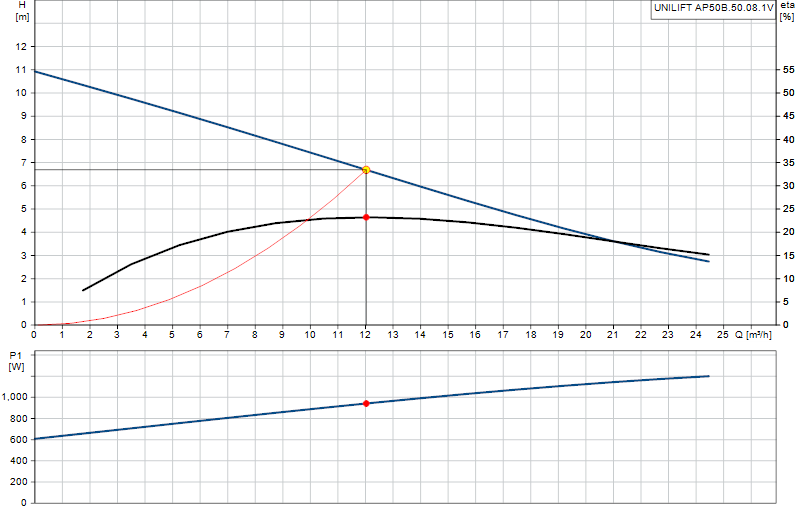

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
Unilift CC, KP, AP and KPC (Data booklet)
Data booklets · English 24,0 MB -
Moroccan declaration of conformity, Unilift AP, Unilift KP, APB (Declaration)
Installation & operating instructions · English 0,2 MB -
UNILIFT AP, APB and APG - Control box (Safety instructions)
Installation & operating instructions · English 0,4 MB -
Unilift AP, APB, KP (Safety instructions)
Installation & operating instructions · English 1,0 MB -
Unilift AP12, AP35, AP50, Control box (Installation and operating instructions)
Installation & operating instructions · English 0,3 MB -
Unilift AP35B, AP50B (I & O instructions)
Installation & operating instructions · English 1,5 MB -
Unilift AP35B, AP50B (Installation and operating instructions)
Installation & operating instructions · English 80,7 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW, Quick Selection guide, Drainage (Product brochure)
Product Brochures · English 0,2 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
Quick Selection guide Drainage (Product brochure)
Product Brochures · English 0,2 MB -
UNILIFT AP/AP BASIC RANGE
Product Brochures · English 0,3 MB -
Unilift AP, APB, APG, CC, KP (Service Kit Catalogue)
Service · English 2,0 MB -
UNILIFT APB MOTOR (Service kit instructions)
Service · English 1,7 MB
