Specifiche tecniche
| Portata nominale (m³/h) | 2 l/s |
| Prevalenza nominale (m) | 15 m |
| Fasi | 1 |
| Tensione nominale | 230 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 70 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Composite |
| Lunghezza (mm) | 498 mm |
| Altezza (mm) | 86.5 mm |
| Peso lordo | 24.8 kg |
| Peso netto | 23.2 kg |
| Approvazioni | CE,EAC,LGA,UKCA,SEPRO |
| Codice EAN | 5715117047880 |

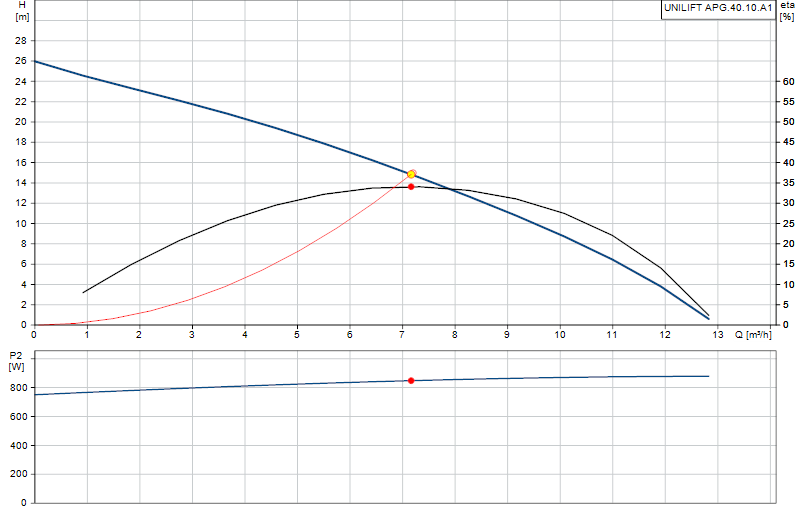

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
Unilift APG, Service instructions
Service · English 2,0 MB -
Unilift CC, KP, AP and KPC (Data booklet)
Data booklets · English 24,0 MB -
Moroccan declaration of conformity, Unilift AP, Unilift KP, APB (Declaration)
Installation & operating instructions · English 0,2 MB -
UNILIFT AP, APB and APG - Control box (Safety instructions)
Installation & operating instructions · English 0,4 MB -
UNILIFT APG (I & O instructions)
Installation & operating instructions · English 4,7 MB -
UNILIFT APG (Safety instructions)
Installation & operating instructions · English 2,8 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS UNILIFT APG (Product brochure)
Product Brochures · English 0,4 MB -
GRUNDFOS UNILIFT APG (Product brochure)
Product Brochures · English 0,5 MB -
GRUNDFOS UNILIFT APG, Ireland version (Product brochure)
Product Brochures · English 0,4 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
UNILIFT AP/AP BASIC RANGE
Product Brochures · English 0,3 MB -
Unilift AP, APB, APG, CC, KP (Service Kit Catalogue)
Service · English 2,0 MB -
Unilift APG, Float switch and power cable, Service kit instructions
Service · English 3,6 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 92611467 (portata e prevalenza equivalenti), disponibili a catalogo.
