Specifiche tecniche
| Portata nominale (m³/h) | 5 m³/h |
| Prevalenza nominale (m) | 45.6 m |
| Potenza assorbita P1 (W) | 1390 W |
| Fasi | 1 |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP44 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | PN 6 bar |
| Pressione nominale attacco | PN 6 |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Composite |
| Tenuta meccanica | BBVP |
| Lunghezza (mm) | 512.62 mm |
| Altezza (mm) | 460 mm |
| Larghezza (mm) | 230 mm |
| Peso lordo | 23 kg |
| Peso netto | 19 kg |
| Approvazioni | CE,EAC |
| Codice EAN | 5713829542471 |

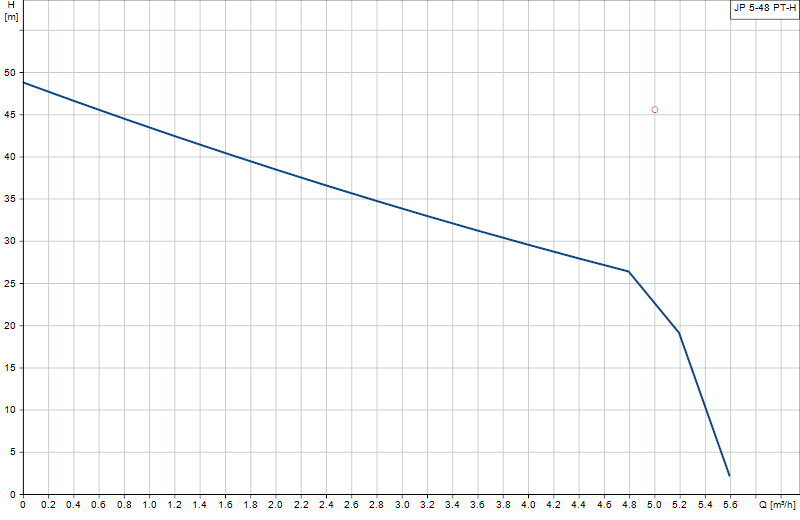

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
Jet pumps and boosters (Data booklet)
Data booklets · English 4,5 MB -
JP and JP Booster (Data booklet)
Data booklets · English 7,4 MB -
CH, JP Booster (Installation and operating instructions)
Installation & operating instructions · English 3,0 MB -
Correction sheet for CH and JP booster sets (Installation and operating instructions)
Installation & operating instructions · English 0,2 MB -
JP and JP Booster (Installation and operating instructions)
Installation & operating instructions · English 1,6 MB -
JP and JP Booster (Petunjuk pengoperasian dan pemasangan)
Installation & operating instructions · English 6,1 MB -
JP and JP Booster (Safety instructions and other important information)
Installation & operating instructions · English 1,1 MB -
JP Basic Booster (I & O instructions)
Installation & operating instructions · English 0,4 MB -
JP Booster PM 1 (Safety instructions)
Installation & operating instructions · English 0,8 MB -
JP Booster PM 2 (Safety instructions)
Installation & operating instructions · English 0,8 MB -
JP Booster PT (Safety instructions)
Installation & operating instructions · English 0,9 MB -
Moroccan declaration of conformity, JP, JP PT, JP PM (Declaration)
Installation & operating instructions · English 0,2 MB -
JP BOOSTER PT (Quick Guide)
Quick Guides · English 4,2 MB -
JPA PT / JPC PT / JPD PT / JPA / JPC (Quick Guide)
Quick Guides · English 9,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DOMESTIC COLD WATER FOR PRESSURE BOOSTING (Product brochure)
Product Brochures · English 0,8 MB -
THE GRUNDFOS JET PUMP & BOOSTER (Product brochure)
Product Brochures · English 0,2 MB -
Jets pump & Jets booster (Service Kit Catalogue)
Service · English 5,5 MB -
JP, JP Booster (Service kit instructions)
Service · English 0,7 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 99463877 (portata e prevalenza equivalenti), disponibili a catalogo.
