Specifiche tecniche
| Portata nominale (m³/h) | 5 m³/h |
| Prevalenza nominale (m) | 45.6 m |
| Potenza assorbita P1 (W) | 1490 W |
| Fasi | 1 |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP44 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | PN 6 bar |
| Pressione nominale attacco | PN 6 |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Composite |
| Tenuta meccanica | BBVP |
| Altezza (mm) | 147 mm |
| Larghezza (mm) | 110 mm |
| Peso lordo | 16.4 kg |
| Peso netto | 13.2 kg |
| Approvazioni | RCM |
| Codice EAN | 5715470490958 |

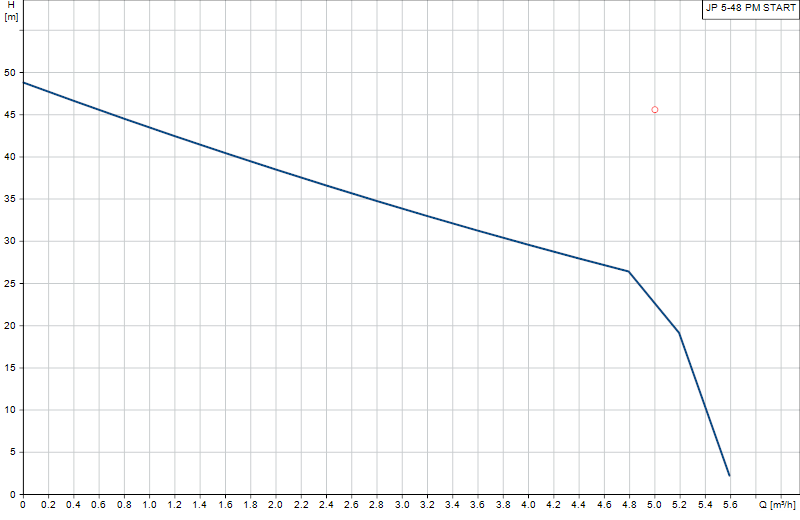

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
