Specifiche tecniche
| Portata nominale (m³/h) | 4.6 m³/h |
| Prevalenza nominale (m) | 38.6 m |
| Prevalenza max (m) | 46.4 m |
| Fasi | 1 |
| Tensione nominale | 220-240 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 60 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 10 bar |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AVBE |
| Lunghezza (mm) | 381.5 mm |
| Altezza (mm) | 75 mm |
| Larghezza (mm) | 290 mm |
| Peso lordo | 25 kg |
| Peso netto | 22 kg |
| Approvazioni | CN ROHS EXE |
| Codice EAN | 5711490645743 |

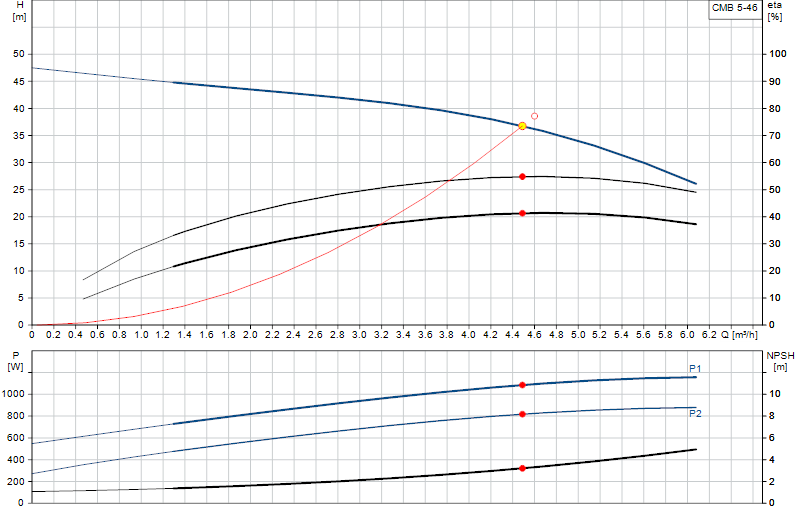

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CMB, CMBE and CMBE TWIN (Data booklet)
Data booklets · English 7,7 MB -
CM Booster PS PT (Safety instructions)
Installation & operating instructions · English 2,8 MB -
CM Booster PS, PT (Installation and operating instructions)
Installation & operating instructions · English 1,1 MB -
CMB PM, CMB PT, CMBE (Installation and operating instructions)
Installation & operating instructions · English 2,0 MB -
CMB, CMB-SP Booster PM1, PM2 (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CMB, CMB-SP, PM START, PM PLUS (Installation and operating instructions)
Installation & operating instructions · English 2,3 MB -
CMB, CMB-SP, PM START, PM PLUS (Safety instructions and other important information)
Installation & operating instructions · English 1,0 MB -
Moroccan declaration of conformity, CMB PS, CMB PT (Declaration)
Installation & operating instructions · English 0,2 MB -
CM BOOSTER PS - Without tank (Quick Guide)
Quick Guides · English 4,2 MB -
CM BOOSTER PT - Horizontal (Quick Guide)
Quick Guides · English 4,1 MB -
CM BOOSTER PT (Indian version) (Quick Guide)
Quick Guides · English 4,2 MB -
CM BOOSTER PT (Quick Guide)
Quick Guides · English 4,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CMB and CMBE selection guide
Product Brochures · English 0,6 MB -
CMBE BOOSTER (Product brochure)
Product Brochures · English 1,0 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
CM Booster (CMBE, CM PT, CM PS) (Service kit instructions)
Service · English 0,6 MB -
CM, CME and Boosters (Service Kit Catalogue)
Service · English 3,4 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 98158281 (portata e prevalenza equivalenti), disponibili a catalogo.
