Hydro MPC-E 6 CRIE 5-4 Grundfos
Grundfos

Hydro MPC-E 6 CRIE 5-4

Codice: 93264214 EAN: 5715470035647
Tipo Hydro MPC-E (GENIECON UNIT)
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)39.9 m³/h
Prevalenza nominale (m)29.9 m
Prevalenza max (m)39.9 m
Fasi3
Tensione nominale400 V
Frequenza (Hz)50 Hz
Grado di protezioneIP54
Temperatura liquido max (°C)60 °C
Temperatura liquido min (°C)5 °C
Temperatura ambiente max (°C)40 °C
Pressione max di esercizio16 bar
Pressione nominale attaccoPN 16
Peso lordo283 kg
Peso netto248 kg
ApprovazioniCE,EAC
Codice EAN5715470035647

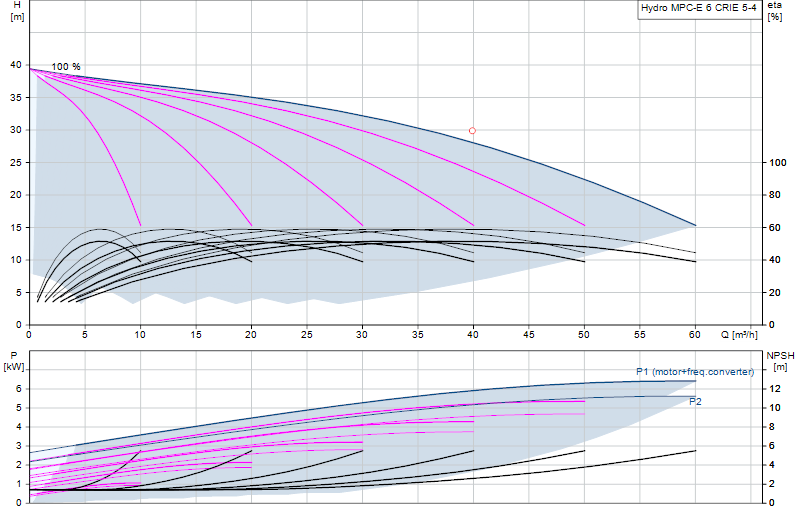

Curva di prestazione

Curva di prestazione Hydro MPC-E 6 CRIE 5-4

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
