Hydro MPC-E 6 CRE 5-4 Grundfos
Grundfos

Hydro MPC-E 6 CRE 5-4

Codice: 93299008 EAN: 5715123654294
Tipo Hydro MPC-E (GENIECON UNIT)
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)39.9 m³/h
Prevalenza nominale (m)29.9 m
Prevalenza max (m)39.9 m
Fasi3
Tensione nominale400 V
Frequenza (Hz)50 Hz
Grado di protezioneIP54
Temperatura liquido max (°C)60 °C
Temperatura liquido min (°C)5 °C
Temperatura ambiente max (°C)40 °C
Pressione max di esercizio16 bar
Pressione nominale attaccoPN 16
Peso lordo283 kg
Peso netto248 kg
ApprovazioniCE
Codice EAN5715123654294

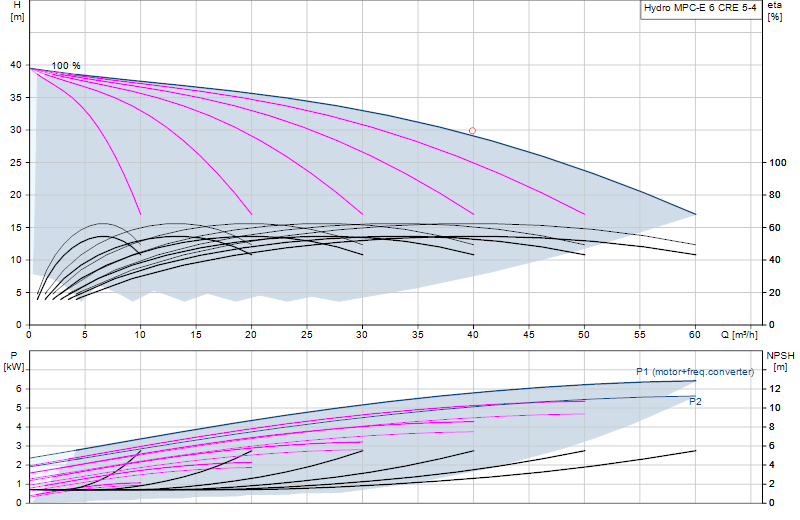

Curva di prestazione

Curva di prestazione Hydro MPC-E 6 CRE 5-4

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Alternative equivalenti

Pompe della stessa classe idraulica di 93299008 (portata e prevalenza equivalenti), disponibili a catalogo.

Hydro MPC-E 6 CRIE 5-4
Grundfos Hydro MPC-E 6 CRIE 5-4 39.9 m³/h39.9 m
NKE 32-130/142
Grundfos NKE 32-130/142 38.24 m³/h39.94 m5.5 kW
Equivalenti
Hydro MPC-E 2 CRNE 15-2
Grundfos Hydro MPC-E 2 CRNE 15-2 41.62 m³/h39.9 m
Hydro MPC-E 2 CRIE 15-2
Grundfos Hydro MPC-E 2 CRIE 15-2 41.62 m³/h39.9 m
Equivalenti
Hydro MPC-E 2 CRE 15-2
Grundfos Hydro MPC-E 2 CRE 15-2 41.62 m³/h39.9 m
DELTA HCU-I 3CRIE 15-2
Grundfos DELTA HCU-I 3CRIE 15-2 41.62 m³/h41.3 m
DELTA HCU-I 3TPE 32-380
Grundfos DELTA HCU-I 3TPE 32-380 37.8 m³/h38 m
TPE2 40-560
Grundfos TPE2 40-560 37.3 m³/h41.7 m5.5 kW
