Hydro MPC-E 2 CRE 10-1 Grundfos
Grundfos

Hydro MPC-E 2 CRE 10-1

Codice: 93244847 EAN: 5713826080068
Tipo Hydro MPC-E (GENIECON UNIT)
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)20.86 m³/h
Prevalenza nominale (m)11.57 m
Prevalenza max (m)14.2 m
Fasi3
Tensione nominale400 V
Frequenza (Hz)50 Hz
Grado di protezioneIP54
Temperatura liquido max (°C)60 °C
Temperatura liquido min (°C)5 °C
Temperatura ambiente max (°C)40 °C
Pressione max di esercizio16 bar
Pressione nominale attaccoPN 16
Peso lordo165 kg
Peso netto125 kg
ApprovazioniCE,EAC
Codice EAN5713826080068

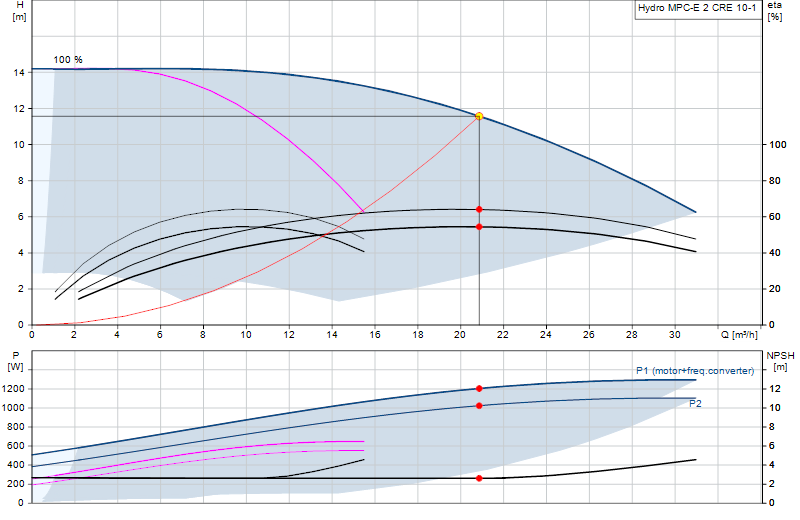

Curva di prestazione

Curva di prestazione Hydro MPC-E 2 CRE 10-1

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet
