BMS 46-2 HP-A-C-P-A-A Grundfos
Grundfos

BMS 46-2 HP-A-C-P-A-A

Codice: 98872104 EAN: 5712602726039
Tipo BMS hp MG
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)55 m³/h
Prevalenza nominale (m)25 m
Numero di stadi2
Indice di efficienza minima (MEI)0.4
Fasi3
Tensione (V)380-480 V
Frequenza (Hz)50 Hz
Grado di protezioneIP55
Temperatura liquido max (°C)40 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)60 °C
Materiale giranteStainless steel
Peso lordo208 kg
Peso netto119 kg
ApprovazioniCE, TR
Codice EAN5712602726039

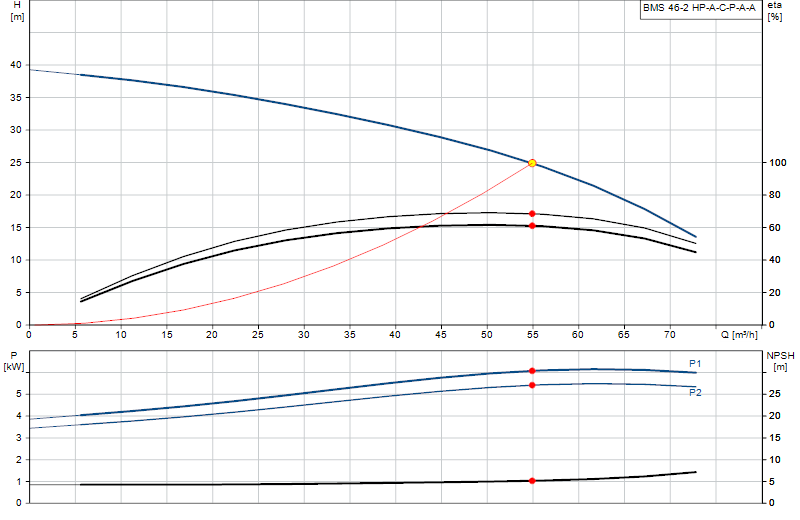

Curva di prestazione

Curva di prestazione BMS 46-2 HP-A-C-P-A-A

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
