DWK.E.10.150.300.5.1D.R Grundfos
Grundfos

DWK.E.10.150.300.5.1D.R

Code: 96922749 EAN: 5700313725373
Type DWK
Request quote

Technical specifications

Nominal flow (m³/h)28 l/s
Nominal head (m)61.7 m
Max. head (m)75 m
Phases3
Rated voltage380-415 V
Frequency (Hz)50 Hz
Enclosure classIP68
Insulation classF
Max. liquid temp. (°C)40 °C
Min. liquid temp. (°C)0 °C
Max. ambient temp. (°C)40 °C
Max. operating pressure5.7 bar
Pump housing materialCast iron
Impeller materialHI-Chrome
Gross weight537 kg
Net weight452 kg
EAN code5700313725373

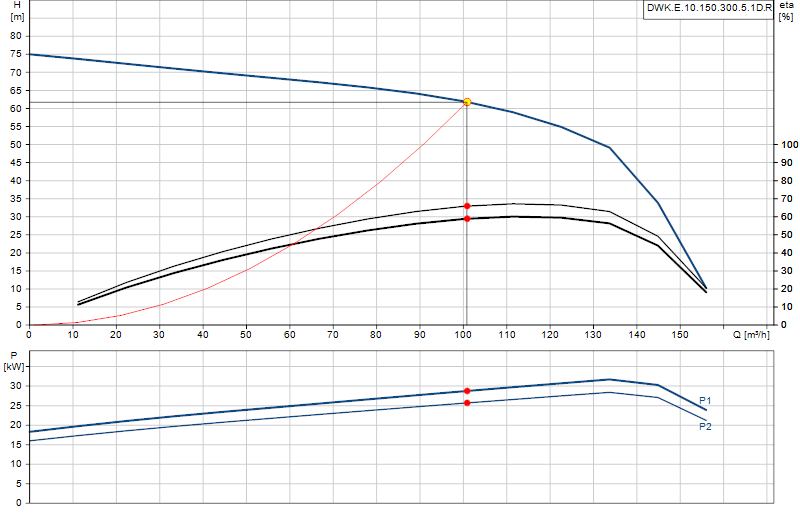

Performance curve

Performance curve DWK.E.10.150.300.5.1D.R

Hover over the curve to read flow and head at any point.

Documents and datasheets

Equivalent alternatives

Pumps in the same hydraulic class as 96922749 (equivalent flow and head), available in the catalogue.

DWK.E.10.150.300.5.1D
Grundfos DWK.E.10.150.300.5.1D 28 m³/h75 m
NBE 32-250/262
Grundfos NBE 32-250/262 26.55 m³/h76.83 m15 kW
Equivalents
NKE 32-250/262
Grundfos NKE 32-250/262 26.55 m³/h76.83 m15 kW
Equivalents
NK 32-250/262
Grundfos NK 32-250/262 26.6 m³/h77.1 m
Equivalents
Hydro MPC-E 4 CRIE 5-9
Grundfos Hydro MPC-E 4 CRIE 5-9 28.2 m³/h68.04 m
Equivalents
NB 32-250/262
Grundfos NB 32-250/262 27.15 m³/h80.32 m15 kW
Equivalents
Hydro MPC-F 3 CRI 10-9
Grundfos Hydro MPC-F 3 CRI 10-9 30 m³/h72.3 m
CRN 32-4
Grundfos CRN 32-4 30 m³/h77.8 m7.5 kW
