Technical specifications
| Nominal flow (m³/h) | 25 l/s |
| Nominal head (m) | 45.6 m |
| Max. head (m) | 66.6 m |
| Phases | 3 |
| Rated voltage | 380-415 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP68 |
| Insulation class | F |
| Max. liquid temp. (°C) | 40 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 5.7 bar |
| Pump housing material | Cast iron |
| Impeller material | Ductile cast iron |
| Gross weight | 515 kg |
| Net weight | 420 kg |
| EAN code | 5700313724543 |

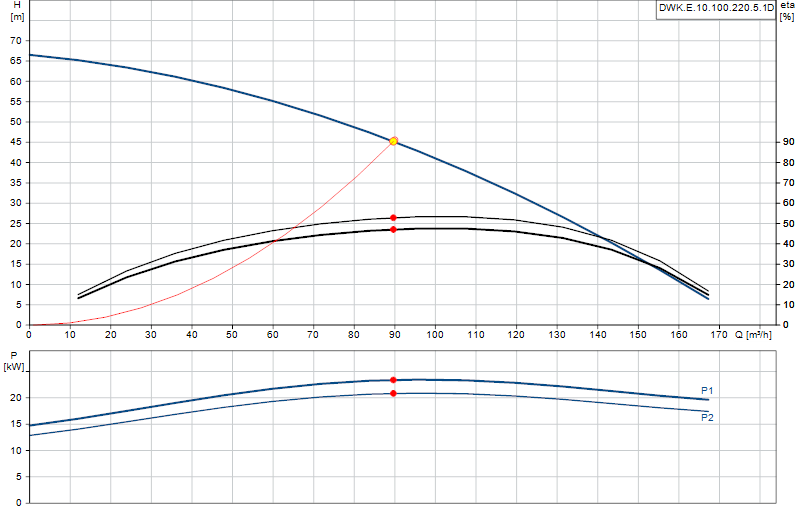

Performance curve
Hover over the curve to read flow and head at any point.
