BMS 160-1A HP-C-C-P-A-A Grundfos
Grundfos

BMS 160-1A HP-C-C-P-A-A

Code: 98494524 EAN: 5711496102004
Type BMS hp MGE
Request quote

Technical specifications

Nominal flow (m³/h)192 m³/h
Nominal head (m)20 m
Number of stages1
Minimum efficiency index (MEI)0.39
Phases3
Voltage (V)380-480 V
Frequency (Hz)50 Hz
Enclosure classIP55
Max. liquid temp. (°C)40 °C
Min. liquid temp. (°C)0 °C
Max. ambient temp. (°C)40 °C
Impeller materialStainless steel
Gross weight363 kg
Net weight273 kg
ApprovalsCE, TR
EAN code5711496102004

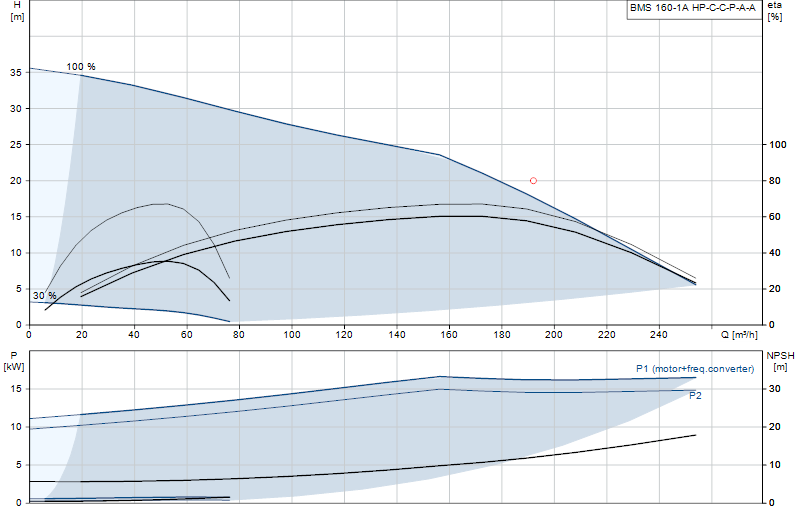

Performance curve

Performance curve BMS 160-1A HP-C-C-P-A-A

Hover over the curve to read flow and head at any point.

Documents and datasheets
