Technical specifications
| Nominal flow (m³/h) | 270 m³/h |
| Nominal head (m) | 327 m |
| Number of stages | 9 |
| Phases | 3 |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | Prepared for VFD |
| Max. liquid temp. (°C) | 40 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 65 bar |
| Pipe connection | PJE |
| Impeller material | Stainless steel |
| Length (mm) | 308.5 mm |
| Gross weight | 2550 kg |
| Net weight | 2260 kg |
| Approvals | CE,EAC,UKCA |
| EAN code | 5715119880706 |

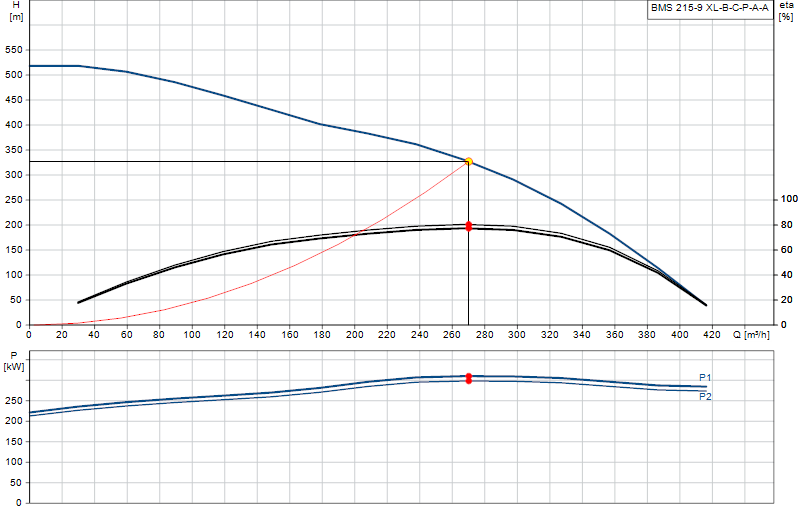

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
BMS (BMS hs, BMS hp, BMST, BMSX)
Service · English 32,0 MB -
BMS (BMS hs, BMS hp, BMS xl, BMSX) (Data booklet)
Data booklets · English 28,5 MB -
BMS, BMS hs, BMS hp and BMSX (I & O instructions)
Installation & operating instructions · English 24,5 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model J, K motor (Installation and operating instructions)
Installation & operating instructions · English 5,9 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model K motor (Safety instructions)
Installation & operating instructions · English 8,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
BMS hs, BMS xl (Service Kit Catalogue)
Service · English 2,8 MB
Equivalent alternatives
Pumps in the same hydraulic class as 92807315 (equivalent flow and head), available in the catalogue.
