Specifiche tecniche
| Portata nominale (m³/h) | 20.4 l/s |
| Prevalenza nominale (m) | 11.2 m |
| Prevalenza max (m) | 16.8 m |
| Fasi | 3 |
| Tensione nominale | 380-415 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 6 bar |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Altezza (mm) | 0 mm |
| Peso lordo | 180 kg |
| Peso netto | 159 kg |
| Approvazioni | EN12050-1 |
| Codice EAN | 5700395208702 |

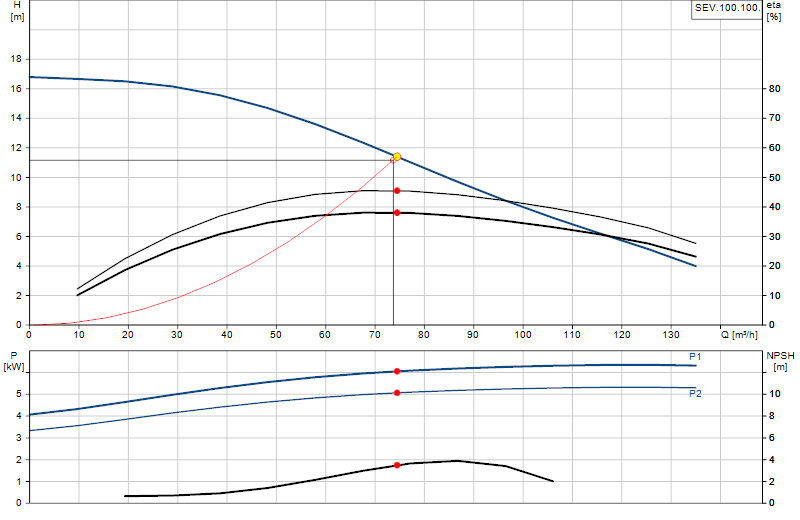

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
