Specifiche tecniche
| Portata nominale (m³/h) | 8.97 l/s |
| Prevalenza nominale (m) | 6.263 m |
| Prevalenza max (m) | 9.8 m |
| Fasi | 3 |
| Tensione nominale | 380-415 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | H |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 6 bar |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Altezza (mm) | 0 mm |
| Peso lordo | 108 kg |
| Peso netto | 96 kg |
| Approvazioni | CE EN12050-1 |
| Codice EAN | 5711498435322 |

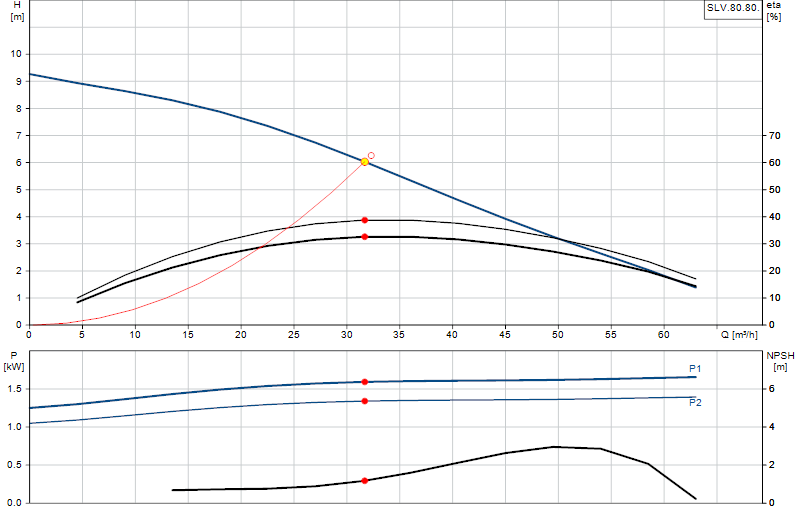

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
SL1, SLV Kit Electronic Controller (Support files)
SUP · English 0,5 MB -
SL1, SLV, 1.1 - 11 kW (Service instruction)
Service · English 4,5 MB -
SE and SL pumps, 9-30 kW (Data booklet)
Data booklets · English 35,0 MB -
SE1, SEV pumps, 1.1 to 11 kW (Data booklet)
Data booklets · English 17,1 MB -
SL1, SLV pumps (1.1 to 11 kW) (Data booklet)
Data booklets · English 8,5 MB -
Correction sheet - DP/EF, SL1/SLV IO, IOS
Installation & operating instructions · English 0,2 MB -
Correction sheet - SL1/SLV IOS
Installation & operating instructions · English 0,2 MB -
DP 10, EF 30, SL1.50, SLV.65 (Safety instructions)
Installation & operating instructions · English 5,4 MB -
DP 10, EF 30, SL1.50, SLV.65 (Safety instructions/Correction sheet)
Installation & operating instructions · English 0,3 MB -
DP 10, EF 30, SL1.50, SLV.65 AUTOAdapt (Safety instructions)
Installation & operating instructions · English 5,5 MB -
SE cable Ex (I & O instructions)
Installation & operating instructions · English 1,5 MB -
SEG, DP, EF, SL1/SLV AUTOADAPT fuse box, type ADC
Installation & operating instructions · English 1,5 MB -
SL1 and SLV pumps, 1.1 - 11 kW (I & O instructions)
Installation & operating instructions · English 2,4 MB -
SL1, SLV, 1.1 - 11 kW (Safety instructions)
Installation & operating instructions · English 3,0 MB -
SL1.50 and SLV.65 AUTOADAPT (Installation and operating instructions)
Installation & operating instructions · English 5,8 MB -
SL1.50 and SLV.65, 0.9 - 1.5 kW (Installation and operating instructions)
Installation & operating instructions · English 5,7 MB -
SL1.50, SLV.65 (Installation and operating instructions) (ZH+GB version)
Installation & operating instructions · English 1,9 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
GRUNDFOS iSOLUTIONS FOR WATER UTILITY APPLICATIONS (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS S-TUBE IMPELLER (Product brochure)
Product Brochures · English 1,0 MB -
Grundfos SE/SL - Submersible and dry-installed wastewater pumps
Product Brochures · English 4,4 MB -
GRUNDFOS SL, SE, S PUMP VARIANTS, 1.1 - 520 kW (Product brochure)
Product Brochures · English 0,8 MB -
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Product Brochures · English 8,2 MB -
Grundfos Whitepaper, wastewater pumps (Product brochure)
Product Brochures · English 0,6 MB -
Harsh environment wastewater pumps
Product Brochures · English 2,5 MB -
Hydrogen Sulphide, -identifying and solving the problem (Product brochure)
Product Brochures · English 25,6 MB -
INCREASE OPERATIONAL RELIABILITY IN YOUR NETWORK (Product brochure)
Product Brochures · English 2,9 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
PUMPS FOR BIOETHANOL AND BIODIESEL (Product brochure)
Product Brochures · English 1,1 MB -
SE, SL Submersible and dry-installed wastewater pumps (Product brochure)
Product Brochures · English 1,1 MB -
SEG, DP, EF, AND SL (AUTOadapt ranges) (Product brochure)
Product Brochures · English 5,0 MB -
DP, EF, SL1, SLV (Service Kit Catalogue)
Service · English 10,9 MB -
DP, EF, SL1, SLV and SEG AUTOADAPT (Electronic unit) (Service kit instruction)
Service · English 4,7 MB -
DP, EF, SL1, SLV and SEG AUTOADAPT, Level sensor (Service kit instruction)
Service · English 3,5 MB -
DP/EF/SL1/SLV and AUTOADAPT (Service instructions)
Service · English 5,5 MB -
SE (Service Kit Catalogue)
Service · English 1,1 MB -
SE and SL Transient barrier
Service · English 0,6 MB -
SE1, SEV, SL1, SLV, 1.1 to 11 kW (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SE1/SEV and SL1/SLV 1.1 to 11 kW (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SE1/SEV and SL1/SLV 1.1 to 11 kW (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
SL1, SLV, 0.9-1.5 kW (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 98624692 (portata e prevalenza equivalenti), disponibili a catalogo.
