NBGE 100-65-200/183 Grundfos

Grundfos

NBGE 100-65-200/183

Codice: 92822685 EAN: 5715120097339

Tipo NBGE, SuperVortex impeller

Richiesta offerta

Specifiche tecniche

Tipo pompa	NBGE
Portata nominale (m³/h)	34.57 m³/h
Prevalenza nominale (m)	6.681 m
Potenza P2 (kW)	1.5 kW
Fasi	3
Fasi	3
Tensione (V)	380-500 V
Frequenza (Hz)	50 Hz
Grado di protezione	IP55
Convertitore di frequenza	Built-in
Temperatura liquido max (°C)	120 °C
Temperatura liquido min (°C)	-25 °C
Temperatura ambiente max (°C)	50 °C
Pressione max di esercizio	16 bar
Pressione nominale attacco	PN 16
Materiale corpo pompa	Cast iron
Materiale girante	Cast iron
Tenuta meccanica	BQQE
Peso lordo	79 kg
Peso netto	62 kg
Codice motore	98971263
Codice EAN	5715120097339

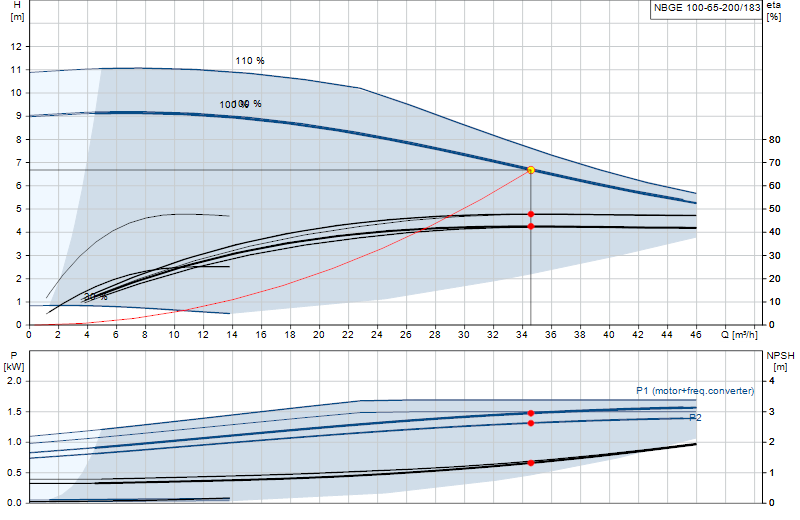

Curva di prestazione

Curva di prestazione NBGE 100-65-200/183

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
