NBGE 100-65-200/183 Grundfos

Grundfos

NBGE 100-65-200/183

Codice: 92822488 EAN: 5715120093607

Tipo NBGE, SuperVortex impeller

Richiesta offerta

Specifiche tecniche

Tipo pompa	NBGE
Portata nominale (m³/h)	68.32 m³/h
Prevalenza nominale (m)	26.22 m
Potenza P2 (kW)	11 kW
Fasi	3
Fasi	3
Tensione (V)	380-500 V
Frequenza (Hz)	50 Hz
Grado di protezione	IP55
Convertitore di frequenza	Built-in
Temperatura liquido max (°C)	120 °C
Temperatura liquido min (°C)	-25 °C
Temperatura ambiente max (°C)	50 °C
Pressione max di esercizio	16 bar
Pressione nominale attacco	PN 16
Materiale corpo pompa	Cast iron
Materiale girante	Cast iron
Tenuta meccanica	BQQE
Peso lordo	138 kg
Peso netto	116 kg
Codice motore	93137587
Codice EAN	5715120093607

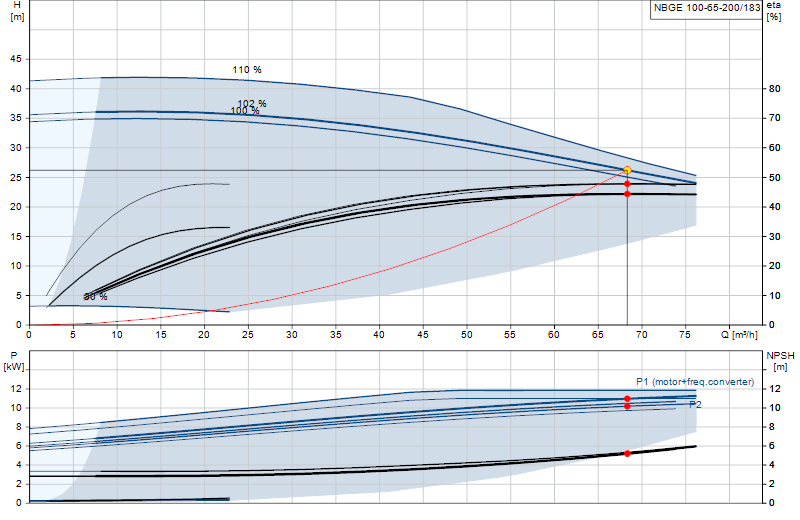

Curva di prestazione

Curva di prestazione NBGE 100-65-200/183

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

NB, NBE, NBG, NBGE (Service Instructions)
Service · English 21,0 MB
NK, NKE, NKG, NKGE (Service instructions)
Service · English 22,9 MB
NBG, NBGE, NKG, NKGE, 50 Hz (Data booklet)
Data booklets · English 40,1 MB
NB, NBG, MTB (I & O instructions)
Installation & operating instructions · English 8,1 MB
NB, NBG, MTB (Safety instructions)
Installation & operating instructions · English 5,6 MB
TPE, TPED Series 1000; NBE, NBGE, NKE, NKGE; TPE, TPED, NBE, NKE Series 2000 (I&O)
Installation & operating instructions · English 6,5 MB
TPE, TPED, NBE, NBGE, MTBE, NKE, NKGE, TPE, TPED, NBE, NKE Series 2000, - below 15 kW, 2-pole and 11 kW, 4-pole
Installation & operating instructions · English 4,8 MB
TPE, TPED; TPE2, TPE2 D, TPE3, TPE3 D; NBE, NBGE, NKE, NKGE; MTBE (Safety instructions)
Installation & operating instructions · English 1,8 MB
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB
NB, NBG, NK, NKG Coated solutions Service Instructions
Service · English 14,9 MB
NBG/E, NKG/E - Super Vortex impeller range – Range 1 (Service Kit Catalogue)
Service · English 8,5 MB
