Specifiche tecniche
| Portata nominale (m³/h) | 5.5 l/s |
| Prevalenza nominale (m) | 8.6 m |
| Prevalenza max (m) | 9.1 m |
| Fasi | 3 |
| Tensione nominale | 400 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione nominale attacco | PN 6 |
| Materiale girante | LURANYL |
| Lunghezza (mm) | 302 mm |
| Larghezza (mm) | 818 mm |
| Peso lordo | 143 kg |
| Peso netto | 120 kg |
| Approvazioni | CE,EAC,MORO,UKCA,SEPRO |
| Codice EAN | 5710626080885 |

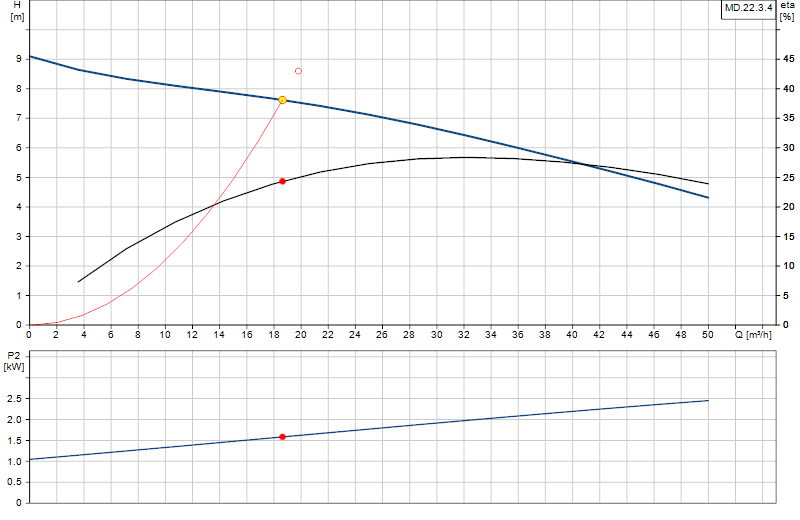

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
