Specifiche tecniche
| Portata nominale (m³/h) | 5.5 l/s |
| Prevalenza nominale (m) | 7.2 m |
| Prevalenza max (m) | 8.8 m |
| Fasi | 3 |
| Tensione nominale | 400 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione nominale attacco | PN 6 |
| Materiale corpo pompa | Composite |
| Materiale girante | LURANYL |
| Lunghezza (mm) | 276 mm |
| Altezza (mm) | 445 mm |
| Larghezza (mm) | 530 mm |
| Peso lordo | 88.6 kg |
| Peso netto | 65.3 kg |
| Approvazioni | CE,EAC,MORO,UKCA,SEPRO |
| Codice EAN | 5710626080670 |

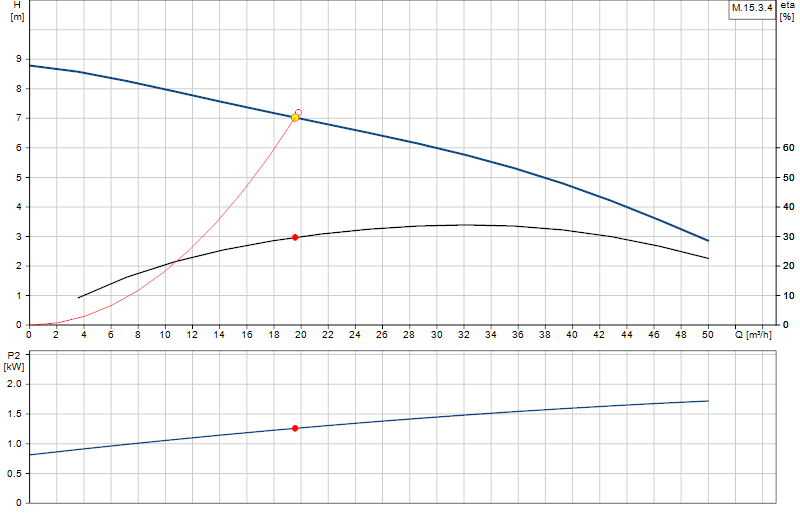

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
LC 220, LC 221 (Service instruction)
Service · English 2,0 MB -
Multilift stations (Service Instruction)
Service · English 4,0 MB -
Multilift, 50 Hz (Lifting stations) (Data booklet)
Data booklets · English 38,9 MB -
LC 221 (Installation and operating instructions)
Installation & operating instructions · English 2,5 MB -
Moroccan declaration of conformity, Multilift (Installation and operating instructions)
Installation & operating instructions · English 0,2 MB -
Multilift M (Installation and operating instructions)
Installation & operating instructions · English 2,7 MB -
MULTILIFT M, MD, MLD, MOG, MDG (Installation and operating instructions)
Installation & operating instructions · English 3,0 MB -
MULTILIFT M, MD, MLD, MOG, MDG, MD1, MDV (Safety instructions)
Installation & operating instructions · English 0,7 MB -
Multilift M, MSS, MD, MLD, MOG, MDG, MD1, MDV (Safety instructions)
Installation & operating instructions · English 0,6 MB -
LC231, LC241 (Quick guide)
Quick Guides · English 1,0 MB -
Multilift M, MD, MOG, MDG (Quick Guide)
Quick Guides · English 10,8 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS CASE STORY, WARSAW, POLAND (Product brochure)
Product Brochures · English 0,6 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, INDIAN VERSION (Product brochure)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Philippines version (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Singapore VERSION (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS MULTILIFT MSS, M, MOG, MD, MLD, MDG, MD1 and MDV (Brochure)
Product Brochures · English 7,3 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
MULTILIFT - Additional high level alarm (Service kit instructions)
Service · English 5,5 MB -
MULTILIFT (Service Kit Catalogue)
Service · English 1,1 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 97901067 (portata e prevalenza equivalenti), disponibili a catalogo.
