Hydro Multi-E 3 CRIE 3-8 Grundfos

Grundfos

Hydro Multi-E 3 CRIE 3-8

Codice: 98486676 EAN: 5711495953430

Tipo Hydro Multi-E

Richiesta offerta

Specifiche tecniche

Fasi	3
Tensione (V)	380-415 V
Frequenza (Hz)	50 / 60 Hz
Grado di protezione	IP54
Temperatura liquido max (°C)	60 °C
Temperatura liquido min (°C)	5 °C
Temperatura ambiente max (°C)	40 °C
Pressione max di esercizio	10 bar
Peso lordo	131 kg
Peso netto	122 kg
Codice EAN	5711495953430

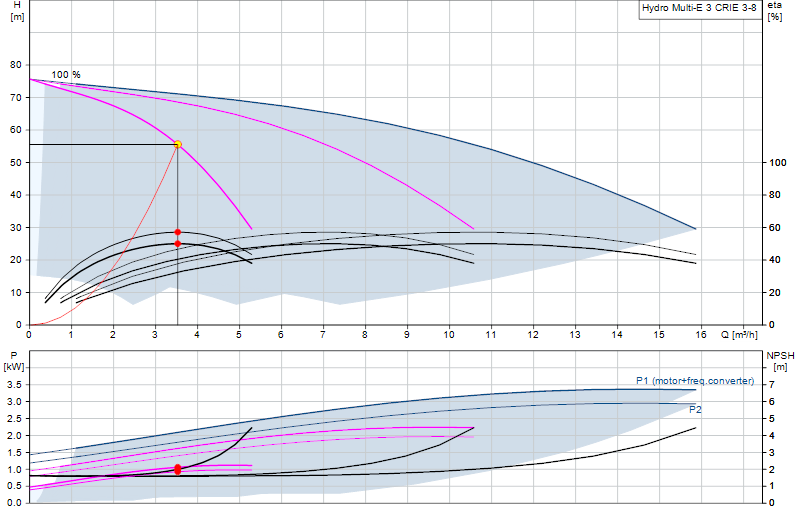

Curva di prestazione

Curva di prestazione Hydro Multi-E 3 CRIE 3-8

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Hydro Multi-E (Service instruction)
Service · English 1,2 MB
Hydro Multi-E, Asian pacific range, booster systems with 2 to 3 CRE and CRNE pumps
Data booklets · English 22,0 MB
Hydro Multi-E, Booster systems with 2 to 4 CRE, CRIE or CME pumps (Data booklet)
Data booklets · English 18,9 MB
Hydro Multi-E, China range
Data booklets · English 18,1 MB
MGE (Data sheet)
Data sheets · English 0,5 MB
Hydro Multi-E - APAC range (Installation and operating instructions)
Installation & operating instructions · English 3,5 MB
Hydro Multi-E (>3.0 kW) (Installation and operating instructions)
Installation & operating instructions · English 2,2 MB
Hydro Multi-E (I & O instructions)
Installation & operating instructions · English 3,6 MB
Hydro Multi-E (Safety instructions and other important information)
Installation & operating instructions · English 2,9 MB
Hydro Multi-E IO, China range
Installation & operating instructions · English 4,7 MB
HYDRO MULTI-E (>3.0 kW) (QUICK GUIDE)
Quick Guides · English 4,8 MB
Hydro Multi-E CME
Quick Guides · English 3,1 MB
Hydro Multi-E, CR(I)E (<2.2 kW) (Quick Guide)
Quick Guides · English 3,4 MB
Hydro Multi-E, CRIE APAC
Quick Guides · English 4,2 MB
Mounting of sensor for Hydro Booster (Quick Guide)
Quick Guides · English 0,1 MB
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB
DIAPHRAGM TANK CALCULATION
Product Brochures · English 0,2 MB
GRUNDFOS COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 3,7 MB
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB
HYDRO MULTI-E (Product brochure)
Product Brochures · English 0,6 MB
Intelligent water boosting made smarter (Product brochure)
Product Brochures · English 2,4 MB
INTELLIGENT WATER BOOSTING MADE SMARTER (Product brochure)
Product Brochures · English 7,0 MB
Manufacturer declaration (Product brochurer)
Product Brochures · English 0,1 MB
Reduce pressure and heat loss through intelligent utalisation of pumps (Product brochure)
Product Brochures · English 7,2 MB
Water Distribution in High rise Building, India version (Product brochure)
Product Brochures · English 3,0 MB
Hydro Multi-E (Service Kit Catalogue)
Service · English 2,6 MB

Grundfos 98486676
