Specifiche tecniche
| Fasi | 3 |
| Tensione (V) | 380-415 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP54 |
| Temperatura liquido max (°C) | 60 °C |
| Temperatura liquido min (°C) | 5 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 16 bar |
| Peso lordo | 138 kg |
| Peso netto | 74 kg |
| Codice EAN | 5715119582884 |

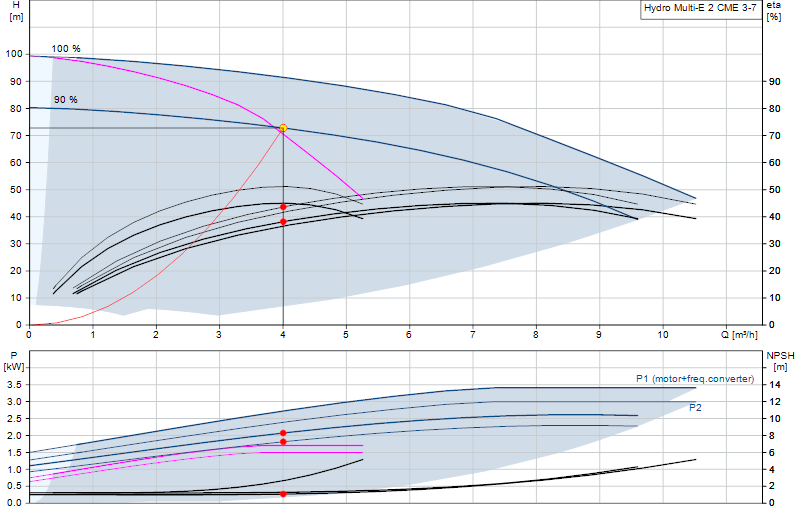

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
Hydro Multi-E (Service instruction)
Service · English 1,2 MB -
Hydro Multi-E, Asian pacific range, booster systems with 2 to 3 CRE and CRNE pumps
Data booklets · English 22,0 MB -
Hydro Multi-E, Booster systems with 2 to 4 CRE, CRIE or CME pumps (Data booklet)
Data booklets · English 18,9 MB -
Hydro Multi-E, China range
Data booklets · English 18,1 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
Hydro Multi-E - APAC range (Installation and operating instructions)
Installation & operating instructions · English 3,5 MB -
Hydro Multi-E (>3.0 kW) (Installation and operating instructions)
Installation & operating instructions · English 2,2 MB -
Hydro Multi-E (I & O instructions)
Installation & operating instructions · English 3,6 MB -
Hydro Multi-E (Safety instructions and other important information)
Installation & operating instructions · English 2,9 MB -
Hydro Multi-E IO, China range
Installation & operating instructions · English 4,7 MB -
HYDRO MULTI-E (>3.0 kW) (QUICK GUIDE)
Quick Guides · English 4,8 MB -
Hydro Multi-E CME
Quick Guides · English 3,1 MB -
Hydro Multi-E, CR(I)E (<2.2 kW) (Quick Guide)
Quick Guides · English 3,4 MB -
Hydro Multi-E, CRIE APAC
Quick Guides · English 4,2 MB -
Mounting of sensor for Hydro Booster (Quick Guide)
Quick Guides · English 0,1 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
DIAPHRAGM TANK CALCULATION
Product Brochures · English 0,2 MB -
GRUNDFOS COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 3,7 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
HYDRO MULTI-E (Product brochure)
Product Brochures · English 0,6 MB -
Intelligent water boosting made smarter (Product brochure)
Product Brochures · English 2,4 MB -
INTELLIGENT WATER BOOSTING MADE SMARTER (Product brochure)
Product Brochures · English 7,0 MB -
Manufacturer declaration (Product brochurer)
Product Brochures · English 0,1 MB -
Reduce pressure and heat loss through intelligent utalisation of pumps (Product brochure)
Product Brochures · English 7,2 MB -
Water Distribution in High rise Building, India version (Product brochure)
Product Brochures · English 3,0 MB -
Hydro Multi-E (Service Kit Catalogue)
Service · English 2,6 MB
