Hydro MPC-E 6 CRE 5-2 Grundfos
Grundfos

Hydro MPC-E 6 CRE 5-2

Codice: 93299003 EAN: 5715123654249
Tipo Hydro MPC-E (GENIECON UNIT)
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)37.26 m³/h
Prevalenza nominale (m)15.06 m
Prevalenza max (m)20 m
Fasi3
Tensione nominale400 V
Frequenza (Hz)50 Hz
Grado di protezioneIP54
Temperatura liquido max (°C)60 °C
Temperatura liquido min (°C)5 °C
Temperatura ambiente max (°C)40 °C
Pressione max di esercizio16 bar
Pressione nominale attaccoPN 16
Peso lordo261 kg
Peso netto228 kg
ApprovazioniCE
Codice EAN5715123654249

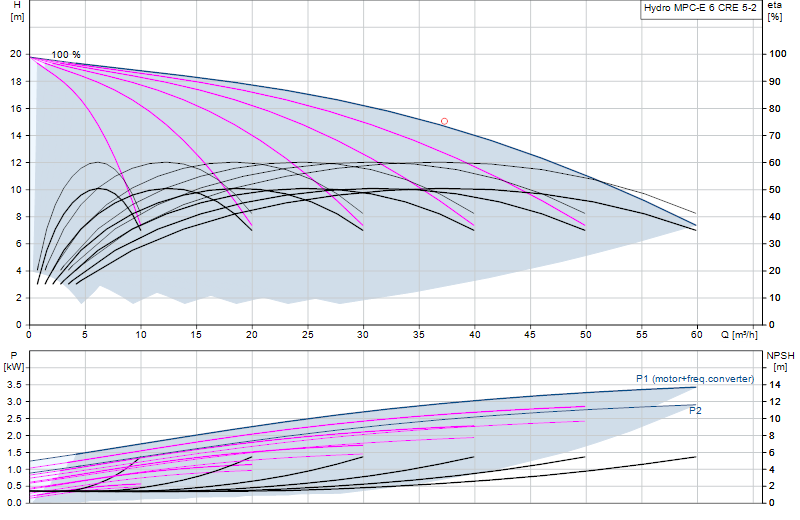

Curva di prestazione

Curva di prestazione Hydro MPC-E 6 CRE 5-2

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Alternative equivalenti

Pompe della stessa classe idraulica di 93299003 (portata e prevalenza equivalenti), disponibili a catalogo.

Hydro MPC-E 6 CRIE 5-2
Grundfos Hydro MPC-E 6 CRIE 5-2 37.26 m³/h20 m
TPE2 D 50-360
Grundfos TPE2 D 50-360 37.22 m³/h20.26 m3 kW
TPE3 D 50-360
Grundfos TPE3 D 50-360 37.22 m³/h20.26 m3 kW
NKE 40-180/142
Grundfos NKE 40-180/142 37.65 m³/h19.48 m3 kW
Equivalenti
DELTA HCU-I 2TPE2 65-200
Grundfos DELTA HCU-I 2TPE2 65-200 38.7 m³/h20 m
Hydro MPC-E 2 CRNE 15-1
Grundfos Hydro MPC-E 2 CRNE 15-1 38.72 m³/h19.7 m
Hydro MPC-E 2 CRE 15-1
Grundfos Hydro MPC-E 2 CRE 15-1 38.72 m³/h19.7 m
Hydro MPC-E 2 CRIE 15-1
Grundfos Hydro MPC-E 2 CRIE 15-1 38.72 m³/h19.6 m
