Hydro MPC-E 2 CRE 5-14 Grundfos
Grundfos

Hydro MPC-E 2 CRE 5-14

Codice: 93244844 EAN: 5713826080037
Tipo Hydro MPC-E (GENIECON UNIT)
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)14.02 m³/h
Prevalenza nominale (m)101.6 m
Prevalenza max (m)140 m
Fasi3
Tensione nominale400 V
Frequenza (Hz)50 Hz
Grado di protezioneIP54
Temperatura liquido max (°C)60 °C
Temperatura liquido min (°C)5 °C
Temperatura ambiente max (°C)40 °C
Pressione max di esercizio16 bar
Pressione nominale attaccoPN 16
Peso lordo171 kg
Peso netto133 kg
ApprovazioniCE,EAC
Codice EAN5713826080037

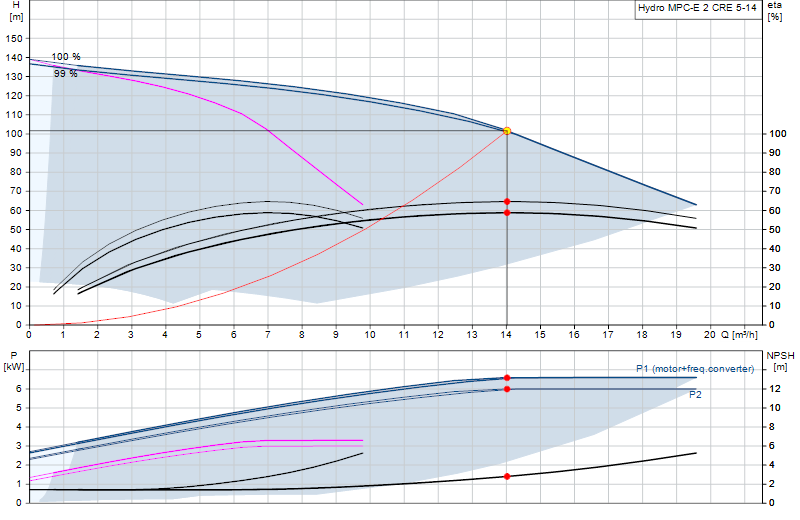

Curva di prestazione

Curva di prestazione Hydro MPC-E 2 CRE 5-14

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Alternative equivalenti

Pompe della stessa classe idraulica di 93244844 (portata e prevalenza equivalenti), disponibili a catalogo.

Hydro MPC-E 2 CRNE 5-14
Grundfos Hydro MPC-E 2 CRNE 5-14 14.02 m³/h140 m

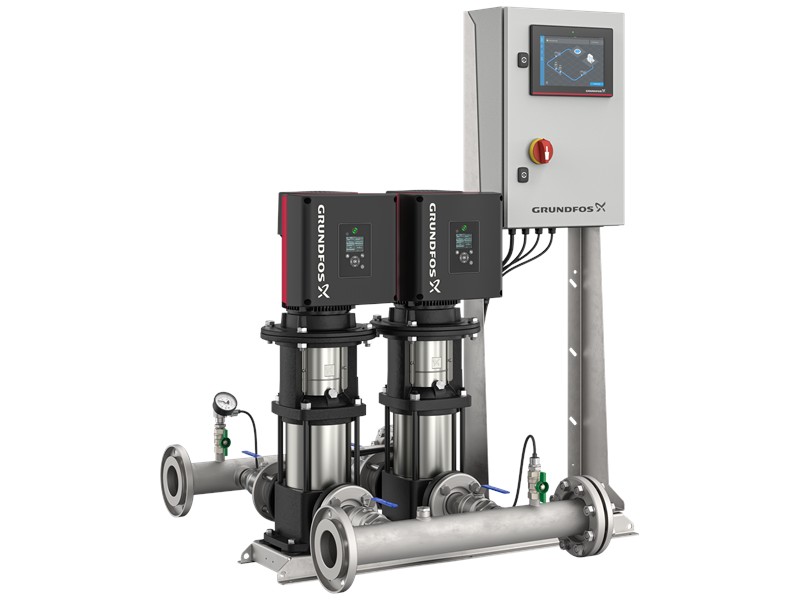

Hydro MPC-E 2 CRIE 5-14
Grundfos Hydro MPC-E 2 CRIE 5-14 14.02 m³/h140 m
Equivalenti

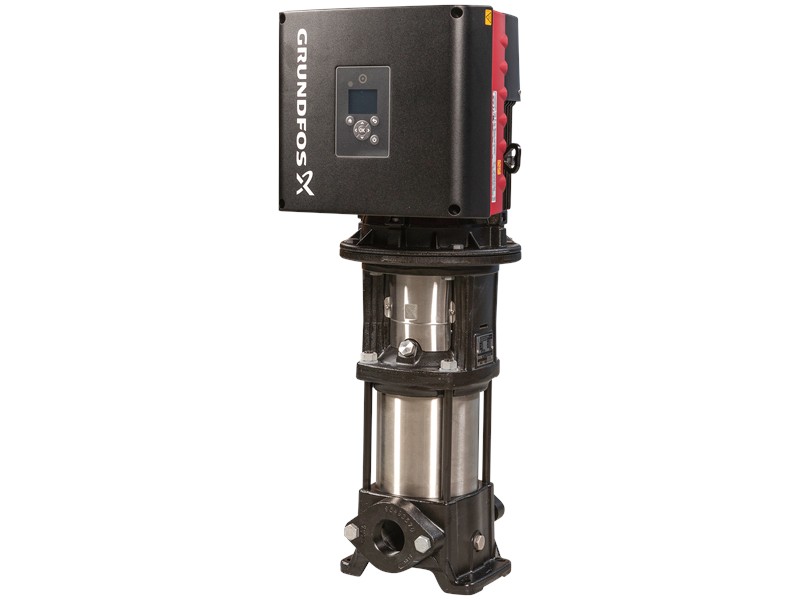

CRE 10-8
Grundfos CRE 10-8 13.91 m³/h147.7 m7.5 kW
Equivalenti

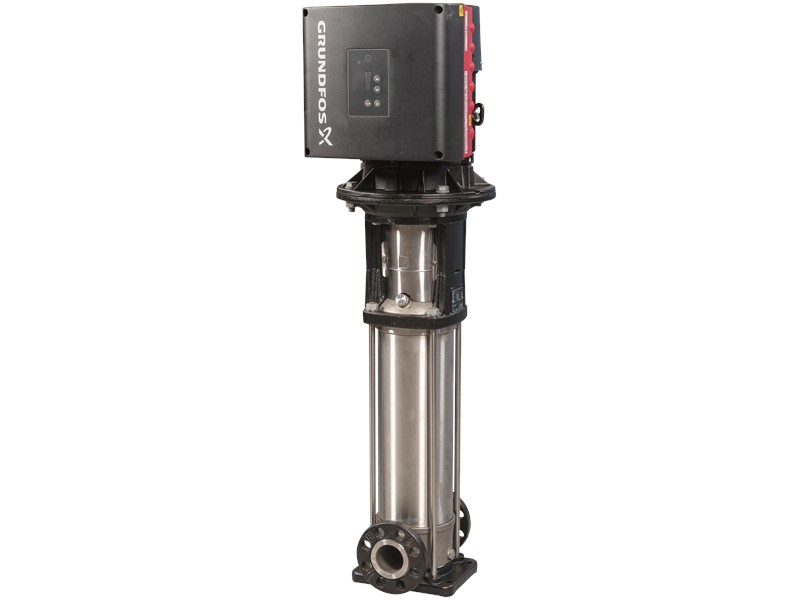

CRNE 10-8
Grundfos CRNE 10-8 13.91 m³/h147.7 m7.5 kW
CRIE 10-8
Grundfos CRIE 10-8 13.91 m³/h147.7 m7.5 kW

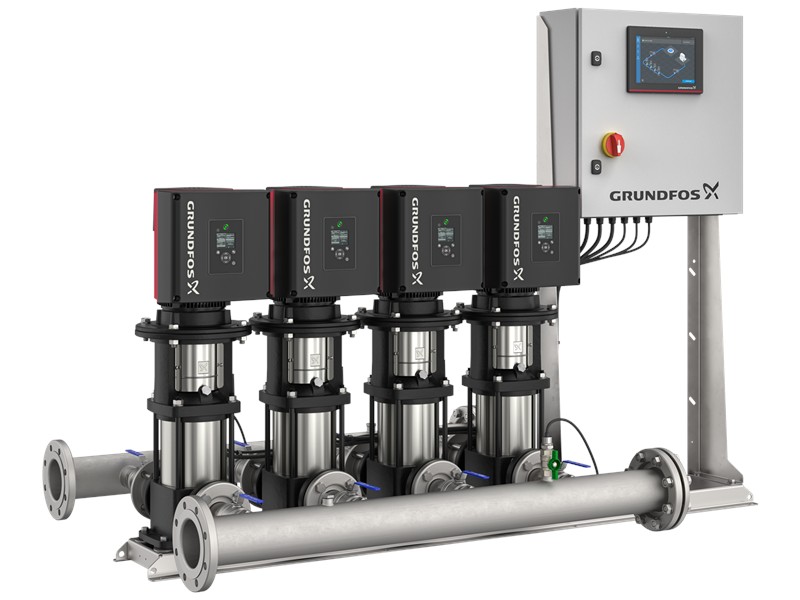

Hydro MPC-E 4 CRNE 3-15
