Specifiche tecniche
| Tipo pompa | DDE |
| Potenza assorbita P1 (W) | 62 W |
| Fasi | 1 |
| Tensione nominale | 100-240 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP65 / TYPE 4X |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 45 °C |
| Pressione max di esercizio | 4 bar |
| Peso lordo | 7.27 kg |
| Peso netto | 6.77 kg |
| Approvazioni | CE,CSA-US,NSF61,EAC,RCM |
| Codice EAN | 5712607841447 |

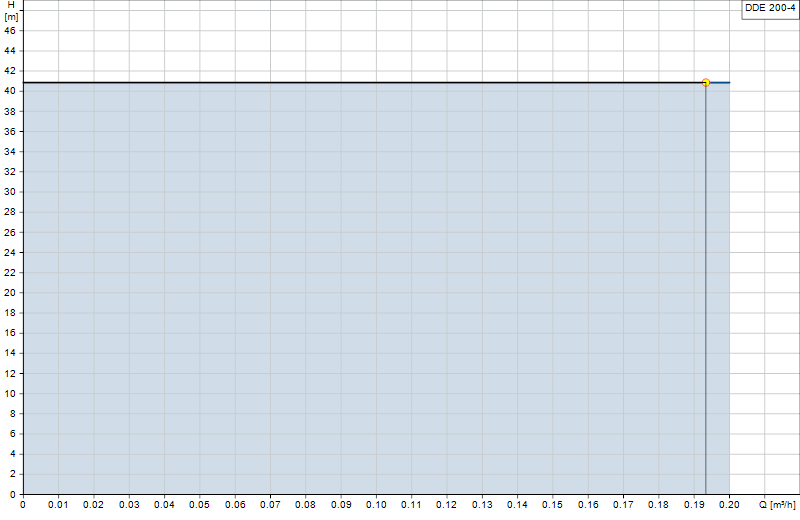

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
SMART Digital XL DDA and DDE (60 to 200 l/h) (Service instructions)
Service · English 4,5 MB -
SMART Digital S - DDA-C, DDC, DDE (Data booklet)
Data booklets · English 8,2 MB -
SMART Digital S, DDA, DDC, DDE up to 30 l/h (Data Booklet)
Data booklets · English 9,6 MB -
SMART Digital XL DDA, DDE Pumps and accessories (Data Booklet)
Data booklets · English 12,1 MB -
China RoHS Correction Sheet (中国 RoHS)
Installation & operating instructions · English 0,3 MB -
SMART Digital S - DDE (Safety instructions)
Installation & operating instructions · English 1,2 MB -
SMART Digital S - DDE, up to 15 l/h (Installation and operating instructions)
Installation & operating instructions · English 1,4 MB -
SMART Digital XL - DDA and DDE (Safety instructions)
Installation & operating instructions · English 3,3 MB -
SMART Digital XL - DDA and DDE (Safety instructions)
Installation & operating instructions · English 1,7 MB -
SMART Digital XL - DDE (Installation and operating instructions)
Installation & operating instructions · English 5,5 MB -
SMART Digital S DDE (Quick Guide)
Quick Guides · English 6,4 MB -
SMART Digital XL DDE (Quick Guide)
Quick Guides · English 11,8 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Dosing and disinfection (Product brochure)
Product Brochures · English 1,2 MB -
DOSING PUMPS, MEASUREMENT & CONTROL AND DISINFECTION SYSTEMS (Product brochure)
Product Brochures · English 1,5 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
GRUNDFOS OFFERINGS FOR INDUSTRIAL WATER REUSE, India version (Product brochure)
Product Brochures · English 1,2 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
SMART DIGITAL S up to 30 l/h DOSING SETS (Brochure)
Product Brochures · English 0,8 MB -
SMART Digital S, DDA, DDC, DDE up to 30 l/h (Brochure)
Product Brochures · English 4,9 MB -
SMART Digital S, DDA, DDC, DDE up to 30 l/h (Leaflet)
Product Brochures · English 0,3 MB -
SMART Digital XL, DDA and DDE (Leaflet)
Product Brochures · English 0,3 MB -
Dosing and disinfection (Service Kit Catalogue)
Service · English 3,7 MB -
SMART Digital XL - DDA and DDE (Service kit instructions)
Service · English 0,8 MB
