Specifiche tecniche
| Tipo pompa | DDE |
| Potenza assorbita P1 (W) | 62 W |
| Fasi | 1 |
| Tensione nominale | 100-240 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP65 / TYPE 4X |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 45 °C |
| Pressione max di esercizio | 7 bar |
| Peso lordo | 6.93 kg |
| Peso netto | 6.43 kg |
| Approvazioni | CE,CSA-US,NSF61,EAC,RCM |
| Codice EAN | 5712607841300 |

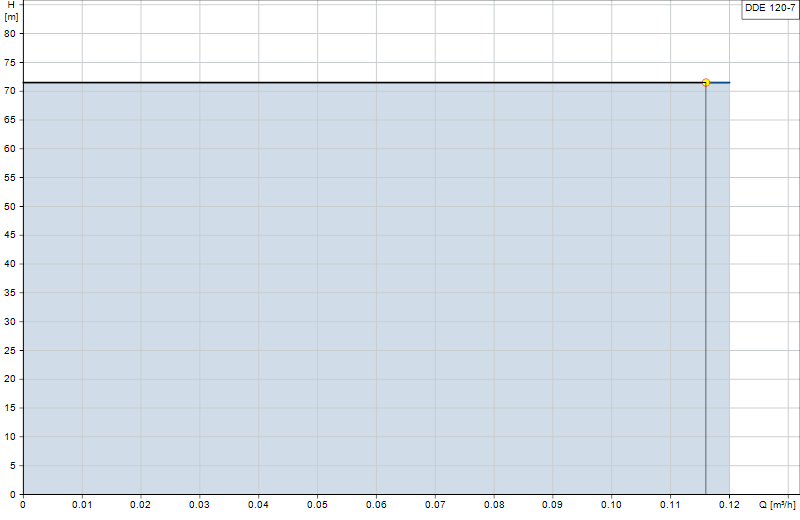

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
