Specifiche tecniche
| Tipo pompa | CRN |
| Portata nominale (m³/h) | 45 m³/h |
| Prevalenza nominale (m) | 242.1 m |
| Prevalenza max (m) | 295.8 m |
| Numero di stadi | 12 |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 45 kW |
| Fasi | 3 |
| Tensione (V) | 220-240D/380-420Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -40 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 33 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 40 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 365 mm |
| Altezza (mm) | 140 mm |
| Larghezza (mm) | 331 mm |
| Peso lordo | 562 kg |
| Peso netto | 460 kg |
| Approvazioni | CE,EAC,UKCA |
| Codice motore | 81U05336 |
| Codice EAN | 5700396691336 |

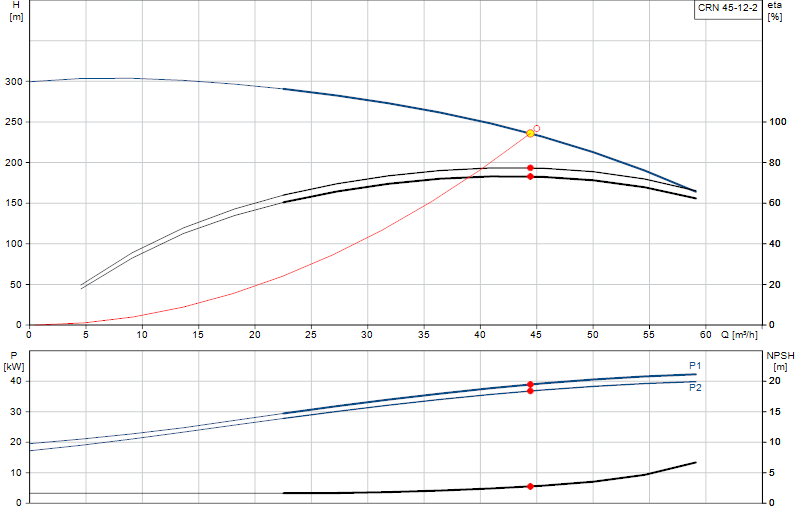

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CR Innovation Inside (System & Concept brochure)
System & Concept brochures · English 2,2 MB -
CR, CRI, CRN 10, 15 and 20 (Service Instructions)
Service · English 0,8 MB -
CR, CRI, CRN 32-90, Air-cooled top, model B (Service instructions)
Service · English 0,9 MB -
CR, CRI, CRN 32-90, Double shaft seal/back-to-back, model B (Service instructions)
Service · English 0,9 MB -
CR, CRI, CRN 32-90, Standard, Model B (Service instruction)
Service · English 1,8 MB -
CR, CRI, CRN Double shaft seal (Back to back)
Service · English 1,7 MB -
CR, CRI, CRN Double shaft seal (Tandem)
Service · English 1,4 MB -
CR, CRI, CRN, High temperature (air-cooled top) (Service instructions)
Service · English 1,4 MB -
CR, CRN 32-90, Double shaft seal/tandem, Model B (Service instructions)
Service · English 0,9 MB -
CR, CRN 95 - 155, Double shaft seal (Back to back) (Service instructions)
Service · English 4,1 MB -
CR, CRN 95 - 155, High temperature, Air-cooled top (Service instructions)
Service · English 3,2 MB -
CR, CRN 95 - 255, Bearing flange (Service instructions)
Service · English 13,7 MB -
CR, CRN 95 to 255 (Service instructions)
Service · English 19,4 MB -
CR, CRN 95 to 255, Horizontally mounted pump (Service instruction)
Service · English 5,2 MB -
CR, CRN 95-155, Double shaft seal (Tandem) (Service instruction)
Service · English 3,5 MB -
CR(N) 32, 45, 64 and 90 (Service Instruction)
Service · English 0,6 MB -
CRI (N) 1, CRI (N) 3 and CRI (N) 5 Model A (Service instruction)
Service · English 1,4 MB -
CR, CRI, CRN 1 - 255, 50 Hz (Data booklet)
Data booklets · English 7,9 MB -
CR, CRI, CRN, CRE, CRIE, CRNE, Custom-built pumps (Data booklet)
Data booklets · English 15,2 MB -
CR, CRI, CRN (Safety instructions)
Installation & operating instructions · English 5,3 MB -
CR, CRI, CRN 140°C, supplement (Installation and operating instructions)
Installation & operating instructions · English 1,6 MB -
CR, CRI, CRN 1s-255 (Installation and operating instructions)
Installation & operating instructions · English 4,5 MB -
CR, CRI, CRN 1s, 1, 3, 5, 10, 15, 20, CR, CRN 32, 45, 64, 90, 120, 150 (air-cooled top) (Multi language)
Installation & operating instructions · English 1,2 MB -
CR, CRI, CRN 1s, 1, 3, 5, 10, 15, 20/CR, CRN 32, 45, 64, 90, 120, 150 Double seal (tandem)
Installation & operating instructions · English 0,9 MB -
CR, CRI, CRN 1s, 1, 3, 5, 10, 15, 20\CR, CRN 32, 45, 64, 90, 120, 150 Double seal (back-to-back) (I/O)
Installation & operating instructions · English 1,1 MB -
CR, CRI, CRN, 0.37 - 75 kW (I & O instructions)
Installation & operating instructions · English 9,4 MB -
CR, CRI, CRN, CRT, ATEX-approved pumps (I & O instructions)
Installation & operating instructions · English 2,3 MB -
CR, CRN 95-155, air-cooled top (Installation and operating instructions)
Installation & operating instructions · English 0,8 MB -
CR, CRN 95-155, Double shaft seal (back-to-back) (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CR, CRN 95-155, Double shaft seal (tandem) (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CR, CRN 95-255 (I & O instructions)
Installation & operating instructions · English 4,7 MB -
CR, CRN 95-255 (Safety instructions)
Installation & operating instructions · English 4,5 MB -
CR, CRN pumps with CUE frequency converter
Installation & operating instructions · English 2,4 MB -
CRN 1S/1/3/5 SF (Service kit instructions)
Installation & operating instructions · English 1,0 MB -
CRN MAGdrive (Correction sheet)
Installation & operating instructions · English 0,3 MB -
CRN MAGdrive (Installation and operating instructions)
Installation & operating instructions · English 2,0 MB -
CRN MAGdrive without motor (Installation and operating instructions)
Installation & operating instructions · English 0,0 MB -
Moroccan declaration of conformity, CR, CRI, CRN, CRT (Instruction)
Installation & operating instructions · English 0,2 MB -
Supplement to CR, CRN 95-255 (Installation and operating instructions)
Installation & operating instructions · English 1,1 MB -
CR, CRN 95-255 (Quick Guide)
Quick Guides · English 2,0 MB -
CR, CRN, CRI, CRT, Removal of TRANSPORT BRACKET (Quick Guide)
Quick Guides · English 5,2 MB -
REMOVAL OF TRANSPORT BRACKET and mounting of MOTOR (Quick Guide)
Quick Guides · English 5,0 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CR pulley head (Product brochure)
Product Brochures · English 0,1 MB -
CRN Air-Cooled Top (Product brochure)
Product Brochures · English 0,6 MB -
CRN high pressure programme (Product brochure)
Product Brochures · English 0,4 MB -
CRN Low NPSH (Product brochure)
Product Brochures · English 0,6 MB -
CRN MAGdrive (Product brochure)
Product Brochures · English 1,0 MB -
CRN Pharmaceutical (Product brochure)
Product Brochures · English 0,2 MB -
CRN PUMP MODEL GS (Product brochure)
Product Brochures · English 2,2 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS INDUSTRIAL SOLUTIONS - PHARMA AND BIOTECH (Product brochure)
Product Brochures · English 1,3 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
PUMPS FOR BIOETHANOL AND BIODIESEL (Product brochure)
Product Brochures · English 1,1 MB -
Couplings (Service kit instruction)
Service · English 1,1 MB -
CR MAGdrive (Service Kit Catalogue)
Service · English 0,4 MB -
CR, CRI, CRN - Coupling/shaft seal (Service kit instruction)
Service · English 1,2 MB -
CR, CRI, CRN (Service Kit Catalogue)
Service · English 6,6 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 96123088 (portata e prevalenza equivalenti), disponibili a catalogo.
