Specifiche tecniche
| Tipo pompa | CRN |
| Portata nominale (m³/h) | 45 m³/h |
| Prevalenza nominale (m) | 242.1 m |
| Prevalenza max (m) | 295.8 m |
| Numero di stadi | 12 |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 45 kW |
| Fasi | 3 |
| Tensione (V) | 380-420D/660-725Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -40 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 33 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 40 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 365 mm |
| Altezza (mm) | 140 mm |
| Larghezza (mm) | 331 mm |
| Peso lordo | 596 kg |
| Peso netto | 494 kg |
| Approvazioni | CE,UKCA |
| Codice motore | 93322793 |
| Codice EAN | 5715472672857 |

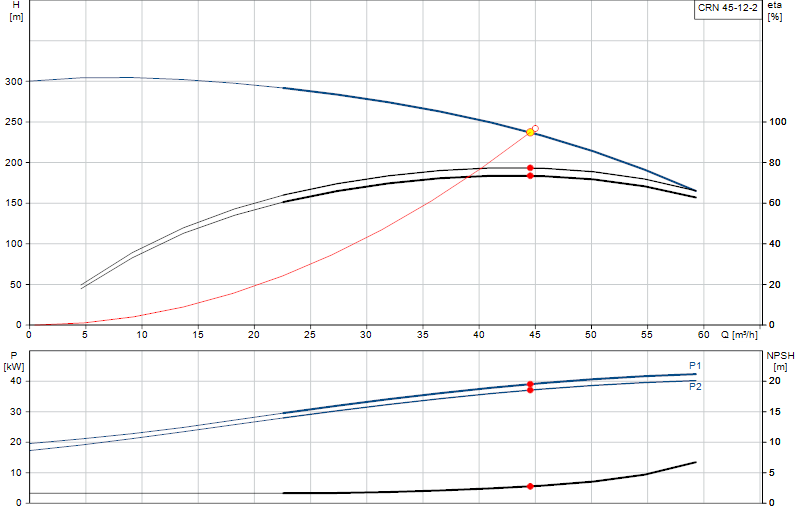

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
