Specifiche tecniche
| Tipo pompa | CME |
| Portata nominale (m³/h) | 12 m³/h |
| Prevalenza nominale (m) | 93.42 m |
| Indice di efficienza minima (MEI) | 0.52 |
| Fasi | 3 |
| Tensione nominale | 380-500 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | Rp |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AQQE |
| Lunghezza (mm) | 612.7 mm |
| Altezza (mm) | 111.8 mm |
| Peso lordo | 50.8 kg |
| Peso netto | 47.3 kg |
| Approvazioni | CE,EAC,CURUS,UKCA |
| Codice EAN | 5712606234974 |

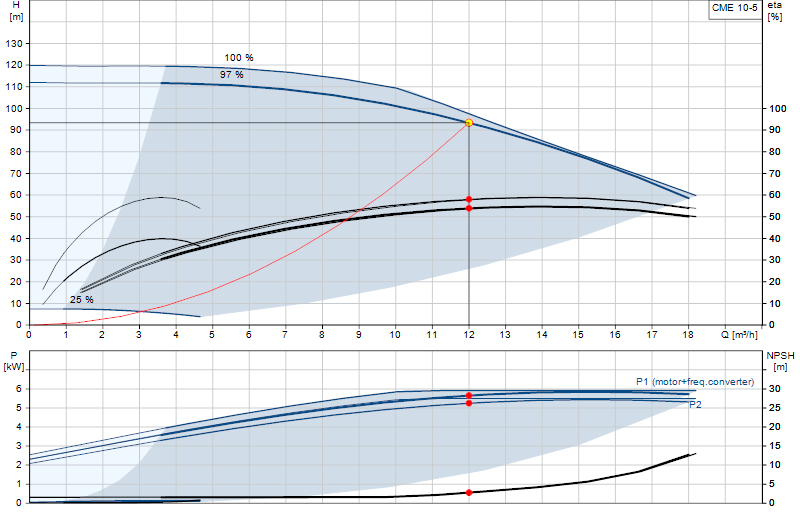

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CM, CME (Service instructions)
Service · English 2,4 MB -
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
CME, CM (Data booklet)
Data booklets · English 37,8 MB -
CME (Data sheet)
Data sheets · English 0,2 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
CM (I & O instructions)
Installation & operating instructions · English 1,2 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model J, K motor (Installation and operating instructions)
Installation & operating instructions · English 5,9 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model K motor (Safety instructions)
Installation & operating instructions · English 8,3 MB -
CRE, CRIE, CRNE, SPKE, MTRE, MTHE, CME 0.37-11 kW (I & O instructions)
Installation & operating instructions · English 2,3 MB -
CRE, CRIE, CRNE, SPKE, MTRE, MTHE, CME, MGE 71-160 (Safety instructions)
Installation & operating instructions · English 7,2 MB -
CREC, CRIEC, CRNEC, MTREC, CMEC - Supplement to Installation and Operating Instructions
Installation & operating instructions · English 2,1 MB -
CREC, CRIEC, CRNEC, MTREC, CMEC (I & O instructions)
Installation & operating instructions · English 7,4 MB -
Hydro Multi-E CME
Quick Guides · English 3,1 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CM, CME, COMPACT PUMPS FOR DEMANDING APPLICATIONS (Product brochure)
Product Brochures · English 1,1 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
Refrigeration and Cooling Manual (Handbook)
Product Brochures · English 2,7 MB -
CM, CME (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
CM, CME and Boosters (Service kit catalogue)
Service · English 2,7 MB -
CM, CME and Boosters (Service Kit Catalogue)
Service · English 3,4 MB

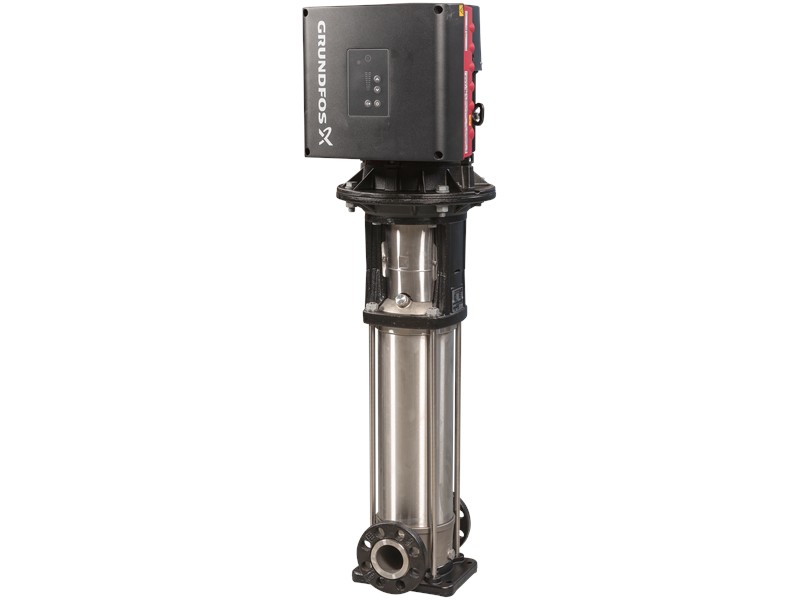

Alternative equivalenti
