Specifiche tecniche
| Tipo pompa | CME |
| Portata nominale (m³/h) | 12 m³/h |
| Prevalenza nominale (m) | 19.69 m |
| Indice di efficienza minima (MEI) | 0.7 |
| Fasi | 3 |
| Tensione nominale | 200-240 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 10 bar |
| Tipo di attacco | NPT(F) |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AQQE |
| Lunghezza (mm) | 388.3 mm |
| Altezza (mm) | 100.3 mm |
| Peso lordo | 29.1 kg |
| Peso netto | 27.4 kg |
| Approvazioni | CE,EAC,CURUS,UKCA |
| Codice EAN | 5713828186973 |

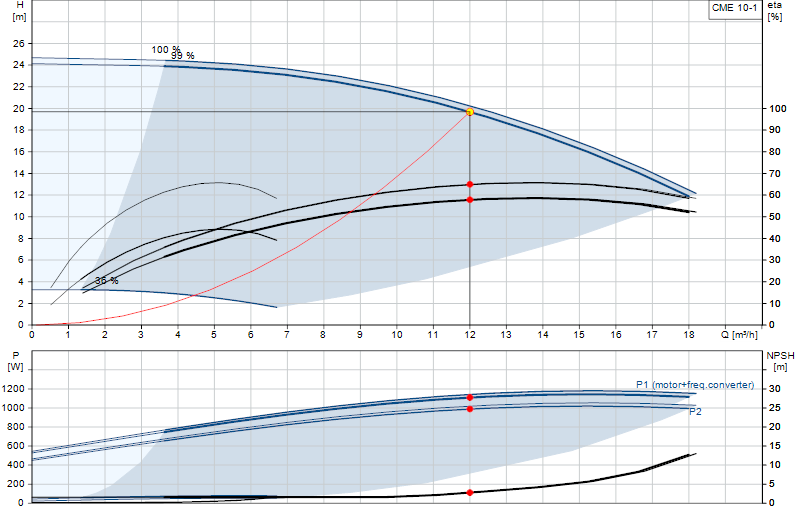

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
