Specifiche tecniche
| Portata nominale (m³/h) | 1.2 m³/h |
| Prevalenza nominale (m) | 29.7 m |
| Fasi | 1 |
| Tensione nominale | 220-230 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 10 bar |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AVBE |
| Lunghezza (mm) | 377 mm |
| Altezza (mm) | 75 mm |
| Larghezza (mm) | 125 mm |
| Peso lordo | 16.1 kg |
| Peso netto | 13.4 kg |
| Approvazioni | CE,RCM |
| Codice EAN | 5715471047304 |

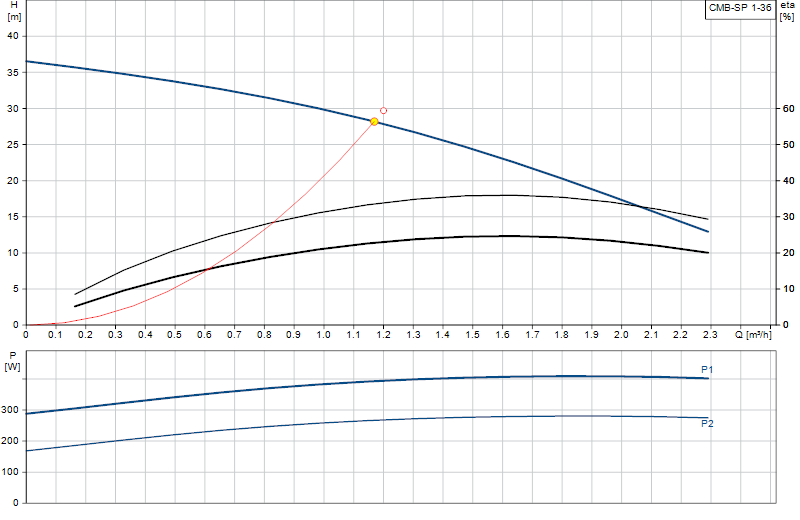

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CMB, CMBE and CMBE TWIN (Data booklet)
Data booklets · English 7,7 MB -
CMB, CMB-SP Booster PM1 (GB-ID-CH version) (Installation and operating instructions)
Installation & operating instructions · English 2,3 MB -
CMB, CMB-SP Booster PM1 (Installation and operating instructions)
Installation & operating instructions · English 2,5 MB -
CMB, CMB-SP Booster PM1, PM2 (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CMB, CMB-SP Booster PM2 (GB-ID-ZH version) (Installation and operating instructions)
Installation & operating instructions · English 0,5 MB -
CMB, CMB-SP Booster PM2 (I & O instructions)
Installation & operating instructions · English 0,7 MB -
CMB, CMB-SP, PM START, PM PLUS (Installation and operating instructions)
Installation & operating instructions · English 2,3 MB -
CMB, CMB-SP, PM START, PM PLUS (Safety instructions and other important information)
Installation & operating instructions · English 1,0 MB -
Correction to installation and operating instructions for Grundfos CM Booster PS.
Installation & operating instructions · English 0,2 MB -
Moroccan declaration of conformity, CMB PM1, CMB SP PM1 (Declaration)
Installation & operating instructions · English 0,2 MB -
Moroccan declaration of conformity, CMB PM2, CMB SP PM2 (Declaration)
Installation & operating instructions · English 0,2 MB -
CM Booster - Self-priming (Quick Guide)
Quick Guides · English 18,7 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CMB and CMBE selection guide
Product Brochures · English 0,6 MB -
CMBE BOOSTER (Product brochure)
Product Brochures · English 1,0 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 93332820 (portata e prevalenza equivalenti), disponibili a catalogo.
