Specifiche tecniche
| Portata nominale (m³/h) | 1.7 m³/h |
| Prevalenza nominale (m) | 23.7 m |
| Fasi | 1 |
| Tensione nominale | 220-230 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 10 bar |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AVBE |
| Lunghezza (mm) | 323.5 mm |
| Altezza (mm) | 75 mm |
| Larghezza (mm) | 125 mm |
| Peso lordo | 15.2 kg |
| Peso netto | 13.4 kg |
| Approvazioni | CE,RCM |
| Codice EAN | 5715471047854 |

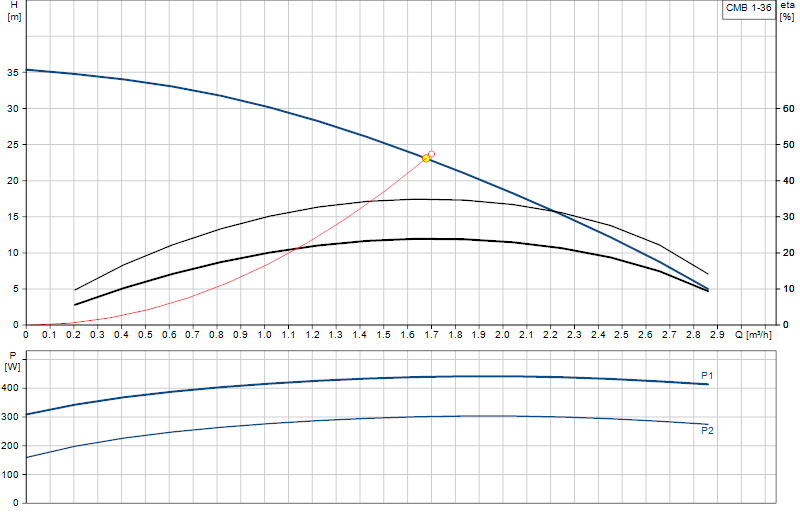

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
