Specifiche tecniche
| Numero di stadi | 3 |
| Indice di efficienza minima (MEI) | -.-- |
| Potenza P2 (kW) | 30 kW |
| Fasi | 3 |
| Tensione (V) | 380-400-415 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP66 |
| Temperatura liquido max (°C) | 40 °C |
| Pressione max di esercizio | 82.7 bar |
| Materiale girante | Stainless steel |
| Peso lordo | 284 kg |
| Peso netto | 202 kg |
| Codice motore | 78195020 |
| Codice EAN | 5710629812452 |

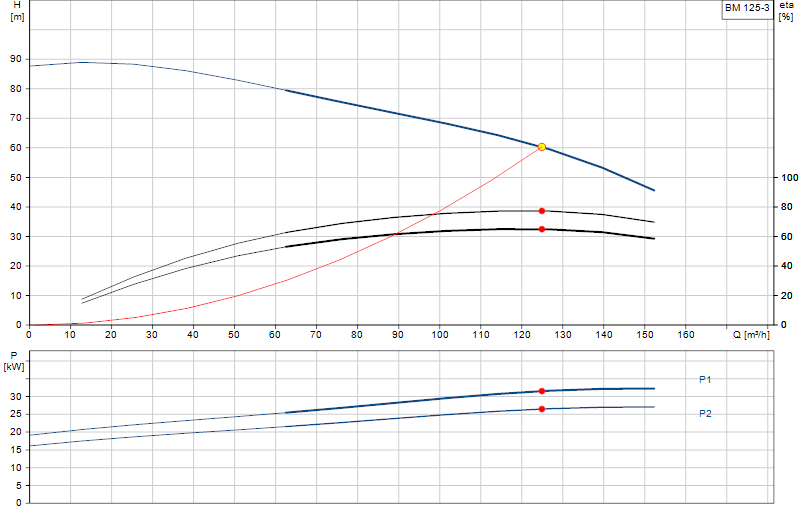

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
BM, BMhp - booster modules (Data booklet)
Data booklets · English 6,8 MB -
BM 8, Replacement - motor cable and 6" / 8" motor (Installation and operating instructions)
Installation & operating instructions · English 5,0 MB -
BM, BMhp (I & O instructions)
Installation & operating instructions · English 2,7 MB -
BMQ, BMQE-NE (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Desalination – An introduction (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
BM, BMB, BME, BMET, BMEX, Booster modules (Service Kit Catalogue)
Service · English 0,7 MB -
BM, BME, BMET (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,2 MB
