BM 46-20 Grundfos

Grundfos

BM 46-20

Codice: 15CS1920 EAN: 5710629812285

Richiesta offerta

Specifiche tecniche

Numero di stadi	20
Indice di efficienza minima (MEI)	0.40
Potenza P2 (kW)	37 kW
Fasi	3
Tensione (V)	380-400-415 V
Frequenza (Hz)	50 Hz
Grado di protezione	IP66
Temperatura liquido max (°C)	40 °C
Pressione max di esercizio	82.7 bar
Materiale girante	Stainless steel
Peso lordo	450 kg
Peso netto	321 kg
Codice motore	96530182
Codice EAN	5710629812285

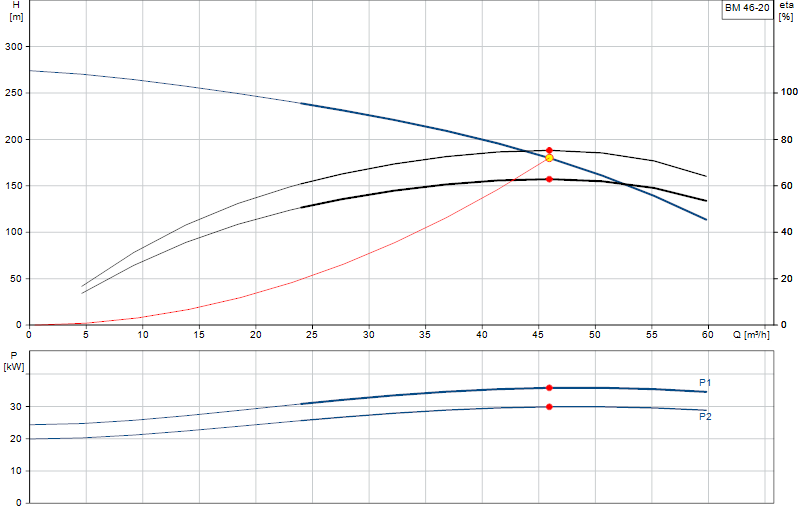

Curva di prestazione

Curva di prestazione BM 46-20

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

BM, BMhp - booster modules (Data booklet)
Data booklets · English 6,8 MB
BM 8, Replacement - motor cable and 6" / 8" motor (Installation and operating instructions)
Installation & operating instructions · English 5,0 MB
BM, BMhp (I & O instructions)
Installation & operating instructions · English 2,7 MB
BMQ, BMQE-NE (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB
Desalination – An introduction (Product brochure)
Product Brochures · English 0,5 MB
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB
BM, BMB, BME, BMET, BMEX, Booster modules (Service Kit Catalogue)
Service · English 0,7 MB
BM, BME, BMET (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,2 MB
