Especificaciones técnicas
| Tipo de bomba | NBE |
| Caudal nominal (m³/h) | 388.5 m³/h |
| Altura nominal (m) | 13.83 m |
| Potencia P2 (kW) | 18.5 kW |
| Fases | 3 |
| Fases | 3 |
| Tensión (V) | 440-480 V |
| Frecuencia (Hz) | 50 / 60 Hz |
| Grado de protección | IP55 |
| Convertidor de frecuencia | Built-in |
| Temp. líquido máx. (°C) | 120 °C |
| Temp. líquido mín. (°C) | -25 °C |
| Temp. ambiente máx. (°C) | 50 °C |
| Presión máx. de servicio | 12 bar |
| Presión nominal de conexión | Class 125 |
| Material del cuerpo de bomba | Cast iron |
| Material del impulsor | Stainless steel |
| Cierre mecánico | BQQE |
| Peso bruto | 286 kg |
| Peso neto | 285 kg |
| Referencia del motor | 92965383 |
| Código EAN | 5715468974460 |

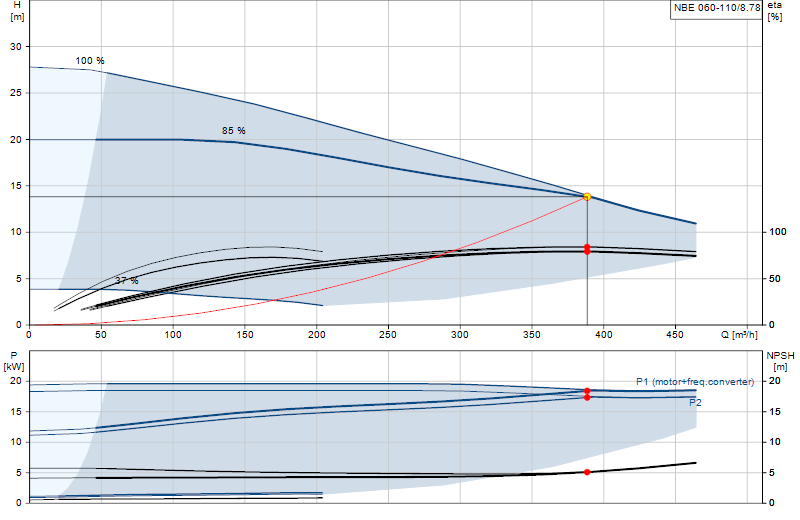

Curva de rendimiento
Pasa el ratón por la curva para leer caudal y altura en cada punto.
