Technical specifications
| Nominal flow (m³/h) | 15.5 m³/h |
| Nominal head (m) | 4.05 m |
| Phases | 3 |
| Voltage (V) | 400-415 V |
| Frequency (Hz) | 50 Hz |
| Insulation class | F |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -10 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 10 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 6/10 |
| Port-to-port length (mm) | 280 mm |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Gross weight | 21.8 kg |
| Net weight | 20.6 kg |
| Approvals | AAA,EAC |
| EAN code | 5708601059063 |

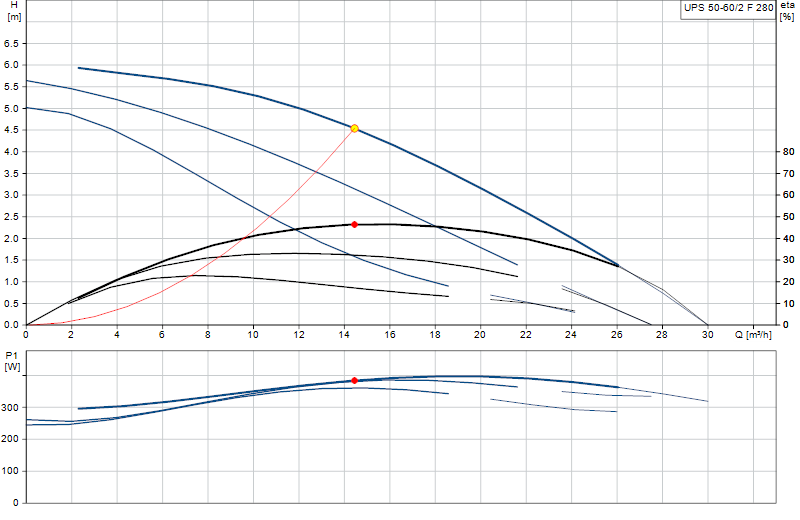

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
Series 200 - UPS, UPSD circulator pumps 50/60 Hz
Data booklets · English 8,6 MB -
UP, UPS, UPSD Circulator pumps
Data booklets · English 28,8 MB -
Relay Module Set - UPS, UPSD Series 200 (Installation and operating instructions)
Installation & operating instructions · English 2,2 MB -
UPS, UPSD Series 200 (I & O instructions)
Installation & operating instructions · English 3,0 MB -
UPS, UPSD Series 200 (Relay module) (Fitting instructions)
Installation & operating instructions · English 3,7 MB -
UPS, UPSD Series 200 (Safety instructions)
Installation & operating instructions · English 2,4 MB -
UPS, UPSD Series 200, Protection module (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
UPS, UPSD Series 200, Pump head (Installation and operating instructions)
Installation & operating instructions · English 7,7 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
GRUNDFOS CASE STORY, WARSAW, POLAND (Product brochure)
Product Brochures · English 0,6 MB
Equivalent alternatives
Pumps in the same hydraulic class as 96402055 (equivalent flow and head), available in the catalogue.
