Technical specifications
| Phases | 1 |
| Voltage (V) | 230 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IPX4D |
| Max. liquid temp. (°C) | 95 °C |
| Min. liquid temp. (°C) | -10 °C |
| Max. ambient temp. (°C) | 55 °C |
| Max. operating pressure | 10 bar |
| Port-to-port length (mm) | 130 mm |
| Pump housing material | Cast iron |
| Impeller material | PES 30% GF |
| Gross weight | 2.25 kg |
| Net weight | 2.25 kg |
| Approvals | CE,VDE |
| EAN code | 5711490377217 |

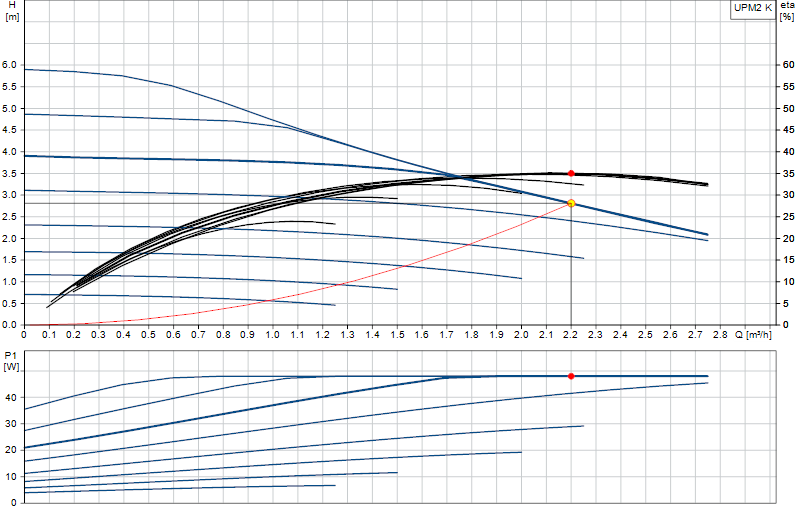

Performance curve
Hover over the curve to read flow and head at any point.
