Technical specifications
| Pump type | TPE3 |
| Nominal flow (m³/h) | 41.9 m³/h |
| Nominal head (m) | 7.3 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 1.1 kW |
| Phases | 1 |
| Voltage (V) | 200-240 V |
| Frequency (Hz) | 50 / 60 Hz |
| Enclosure class | IP55 |
| Frequency converter | Built-in |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 50 °C |
| Max. operating pressure | 6 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 6 |
| Port-to-port length (mm) | 450 mm |
| Pump housing material | Cast iron |
| Impeller material | Composite |
| Shaft seal | BQBE |
| Length (mm) | 450 mm |
| Height (mm) | 102 mm |
| Gross weight | 47.1 kg |
| Net weight | 38.3 kg |
| Motor number | 99137987 |
| EAN code | 5713826362676 |

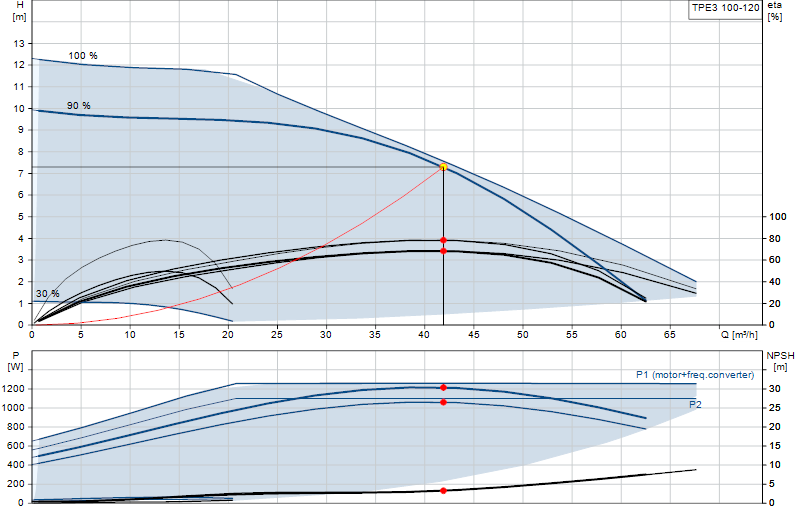

Performance curve
Hover over the curve to read flow and head at any point.
