Technical specifications
| Pump type | TPE2 |
| Nominal flow (m³/h) | 119 m³/h |
| Nominal head (m) | 19.01 m |
| Minimum efficiency index (MEI) | 0.7 |
| Power P2 (kW) | 7.5 kW |
| Phases | 3 |
| Voltage (V) | 380-500 V |
| Frequency (Hz) | 50 / 60 Hz |
| Enclosure class | IP55 |
| Frequency converter | Built-in |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -25 °C |
| Max. ambient temp. (°C) | 50 °C |
| Max. operating pressure | 16 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 16 |
| Port-to-port length (mm) | 500 mm |
| Pump housing material | Cast iron |
| Impeller material | Cast iron |
| Shaft seal | BQQE |
| Length (mm) | 500 mm |
| Height (mm) | 140 mm |
| Gross weight | 280 kg |
| Net weight | 244 kg |
| Motor number | 93026097 |
| EAN code | 5715471148100 |

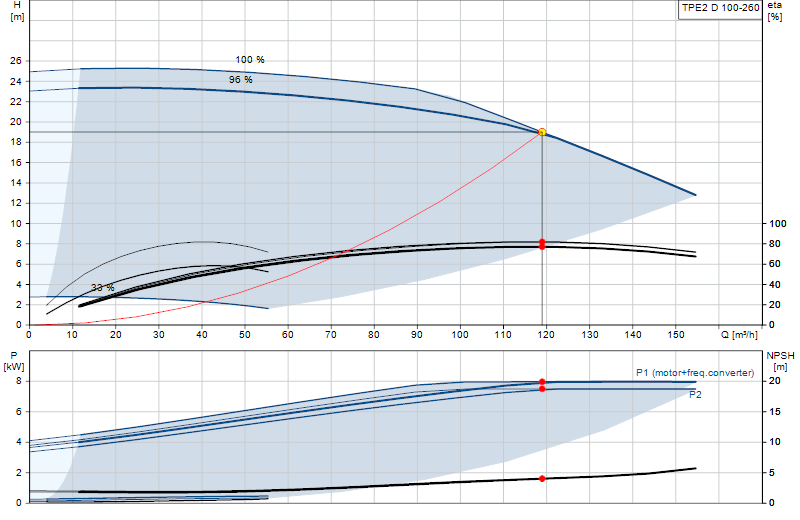

Performance curve
Hover over the curve to read flow and head at any point.
