Technical specifications
| Pump type | TP |
| Nominal flow (m³/h) | 3.4 m³/h |
| Nominal head (m) | 2.8 m |
| Power P2 (kW) | 0.25 kW |
| Phases | 3 |
| Voltage (V) | 220-240D/380-415Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 Dust/Jetting |
| Frequency converter | None |
| Max. liquid temp. (°C) | 140 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 10 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 6/10 |
| Port-to-port length (mm) | 280 mm |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Shaft seal | BQBE |
| Length (mm) | 280 mm |
| Height (mm) | 79 mm |
| Gross weight | 60.8 kg |
| Net weight | 49.1 kg |
| Motor number | 99928151 |
| EAN code | 5712608954030 |

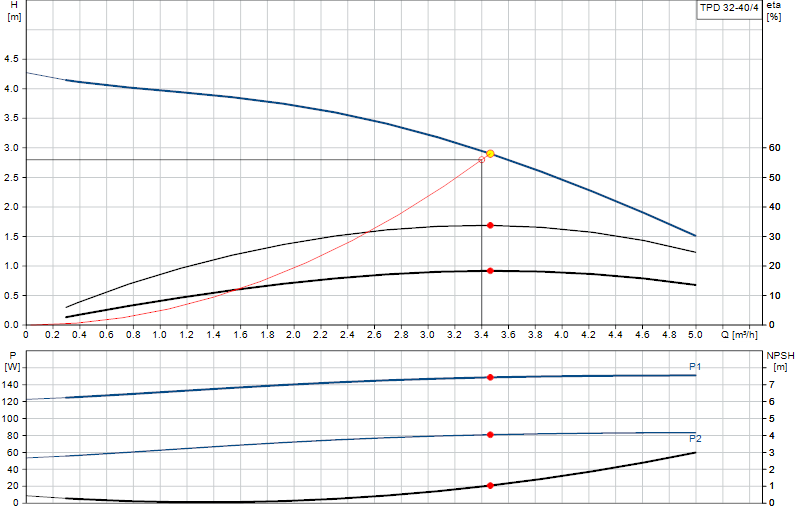

Performance curve
Hover over the curve to read flow and head at any point.
